MI-254 Series
Manufacturer: Altech Corporation
Beta
⌘K

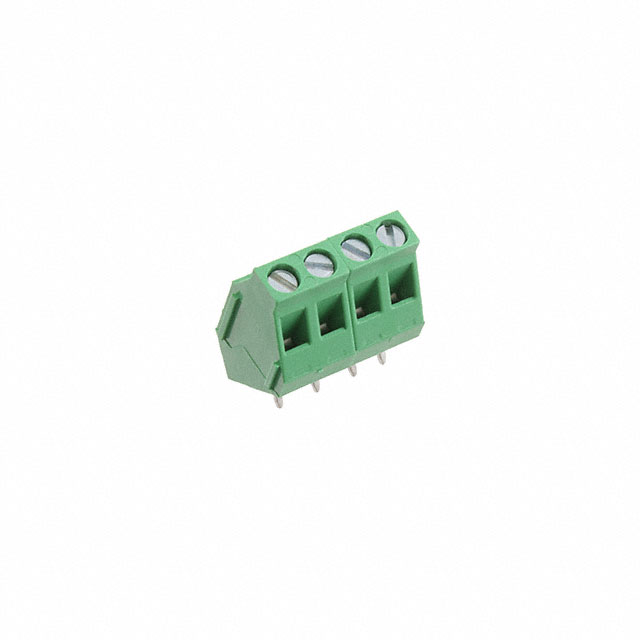

TERM BLOCK 4POS 45DEG 5.08MM PCB
| Part | Screw Material | Screw Thread | Contact Material | Plating | Torque - Screw | Housing Material | Clamp Material | Clamp Plating | Mounting Type | Current | Wire Termination | Pitch | Number of Levels | Color | Voltage | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Mating Orientation (Angle) | Mating Orientation (Description) | Mating Orientation (Angle) (Alternate) | Positions Per Level | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | Galvanized Steel | M3 | Brass | Tin Plated | 0.5 Nm | Nylon PA Polyamide | Brass | Nickel Plated | Through Hole | 15 A | Rising Cage Clamp Screw | 5.08 mm | 1 | Green | 300 V | 14 AWG | 30 AWG | 45 ° | Angle with Board | 135 ° | 4 | Interlocking (Side) |
 Altech Corporation | ||||||||||||||||||||||
Altech Corporation |
