Fixed Terminal Blocks SPT-THR 1 5/5-H-3 81 P26
Fixed Terminal Blocks SPT-THR 1 5/5-H-3 81 P26
| Part | Mounting Type | Voltage | Current | Number of Levels | Pitch | Pitch | Wire Termination | Mating Orientation | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Color | Contact Material - Plating | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.81 mm | 0.15 in | Leg Spring Push-In Spring | Horizontal with Board | 8 | 24 AWG | 16 AWG | Black | ||
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.81 mm | 0.15 in | Leg Spring Push-In Spring | Horizontal with Board | 10 | 24 AWG | 16 AWG | Black | ||
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.81 mm | 0.15 in | Leg Spring Push-In Spring | Vertical with Board | 10 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |

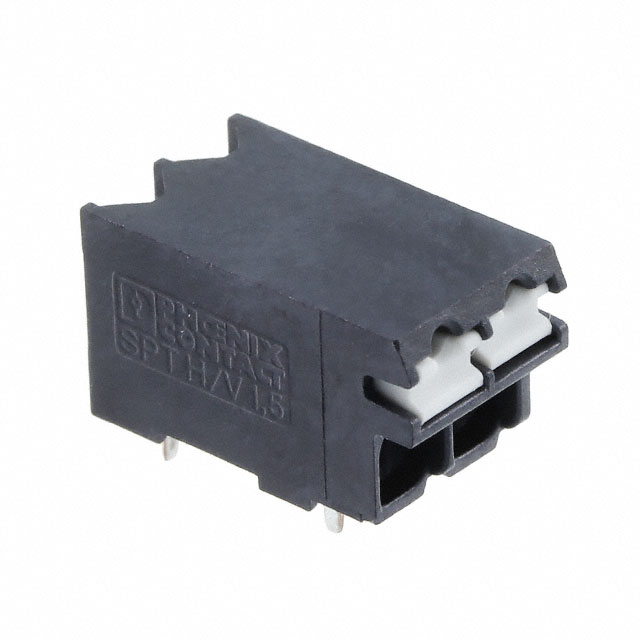

 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.5 mm | 0.138 " | Leg Spring Push-In Spring | Horizontal with Board | 2 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |

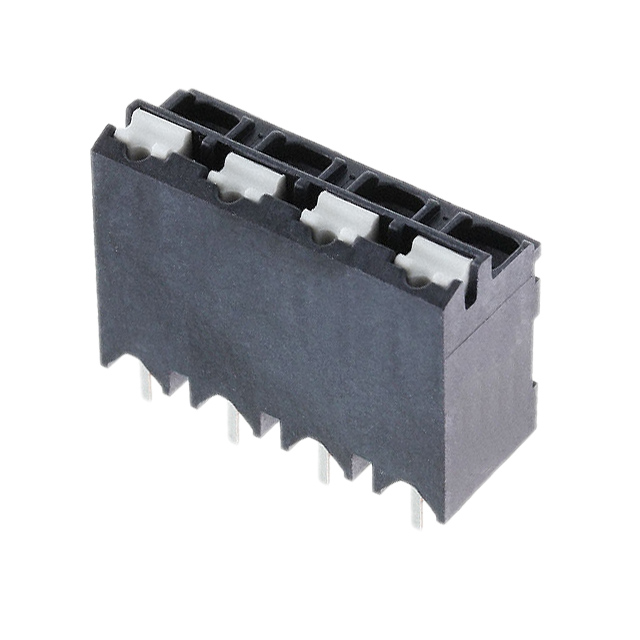

 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.81 mm | 0.15 in | Leg Spring Push-In Spring | Vertical with Board | 4 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |
Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.5 mm | 0.138 " | Leg Spring Push-In Spring | Horizontal with Board | 8 | 24 AWG | 16 AWG | Black | ||
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.5 mm | 0.138 " | Leg Spring Push-In Spring | Horizontal with Board | 4 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.81 mm | 0.15 in | Leg Spring Push-In Spring | Horizontal with Board | 5 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |
 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.5 mm | 0.138 " | Leg Spring Push-In Spring | Vertical with Board | 5 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |

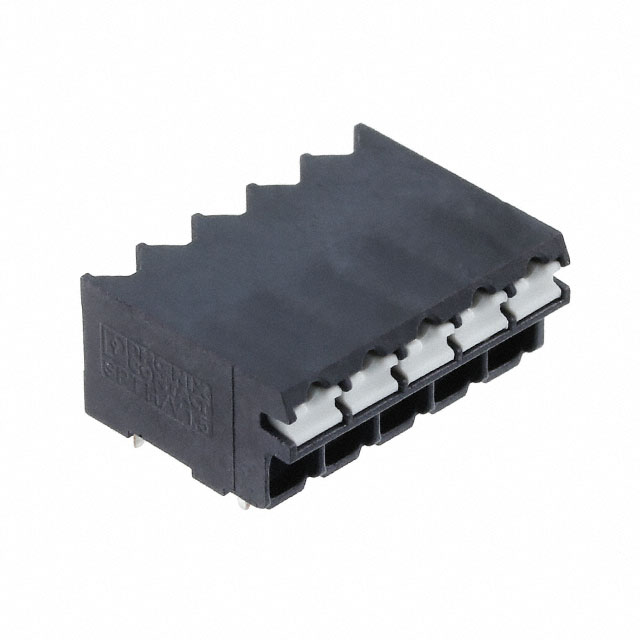

 Phoenix Contact | Through Hole | 300 VDC | 10 A | 1 | 3.5 mm | 0.138 " | Leg Spring Push-In Spring | Horizontal with Board | 5 | 24 AWG | 16 AWG | Black | Tin Plated | Liquid Crystal Polymer (LCP) |
