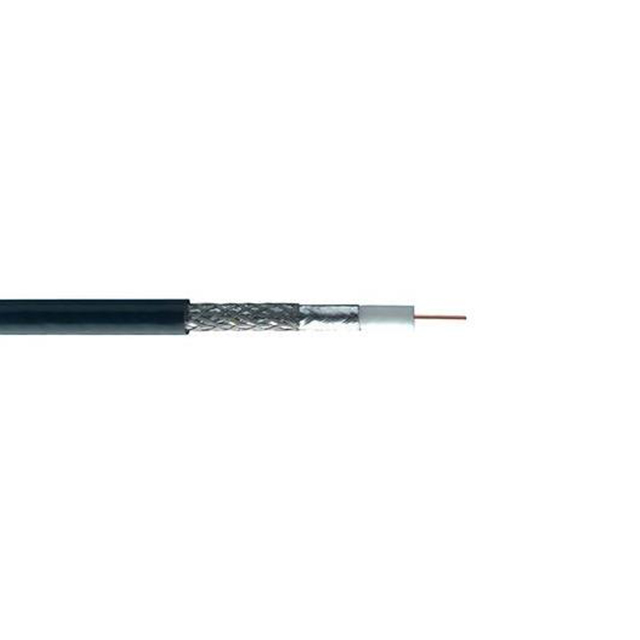

9248 Series
Manufacturer: Belden Inc.
Beta
⌘K
#18 PE/GIFHDPE SH FRPVC
| Part | Shield Coverage [custom] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Usage | Length [x] | Length [x] | Impedance | Cable Group | Jacket (Insulation) Material | Conductor Strand | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 60 % 100 % | 0.18 in | 4.57 mm | Copper Bare | Aluminum Copper Tinned | 80 °C | -40 C | 82 | Foam Polyethylene (FPE) | 0.27 " | 6.86 mm | Black | 18 AWG | Analog Video | 304.8 m | 1000 ft | 75 Ohms | RG-6 | Poly-Vinyl Chloride (PVC) | Solid | Coaxial | Braid Foil |
Belden Inc. | 60 % 100 % | 0.18 in | 4.57 mm | Copper Bare | Aluminum Copper Tinned | 80 °C | -40 C | 82 | Foam Polyethylene (FPE) | 0.27 " | 6.86 mm | Black | 18 AWG | Analog Video | 304.8 m | 1000 ft | 75 Ohms | RG-6 | Poly-Vinyl Chloride (PVC) | Solid | Coaxial | Braid Foil |
Belden Inc. | 60 % 100 % | 0.18 in | 4.57 mm | Copper Bare | Aluminum Copper Tinned | 80 °C | -40 C | 82 | Foam Polyethylene (FPE) | 0.27 " | 6.86 mm | Black | 18 AWG | Analog Video | 304.8 m | 1000 ft | 75 Ohms | RG-6 | Poly-Vinyl Chloride (PVC) | Solid | Coaxial | Braid Foil |
Belden Inc. | 60 % 100 % | 0.18 in | 4.57 mm | Copper Bare | Aluminum Copper Tinned | 80 °C | -40 C | 82 | Foam Polyethylene (FPE) | 0.27 " | 6.86 mm | Black | 18 AWG | Analog Video | 152.4 m | 500 ft | 75 Ohms | RG-6 | Poly-Vinyl Chloride (PVC) | Solid | Coaxial | Braid Foil |
