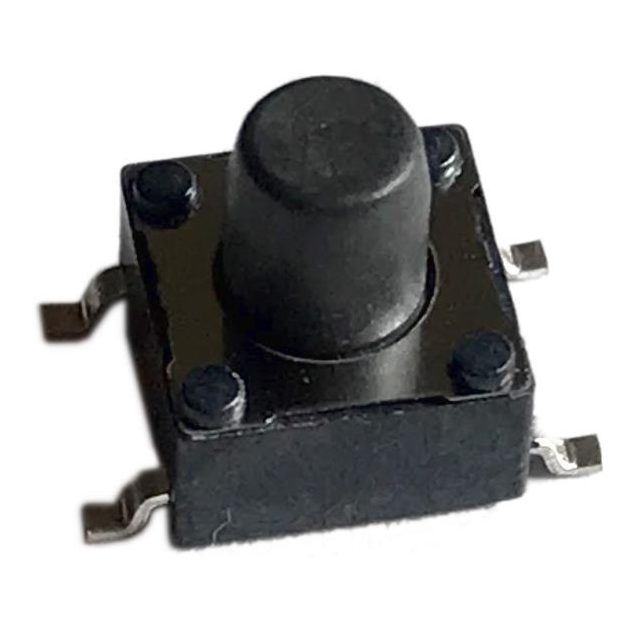

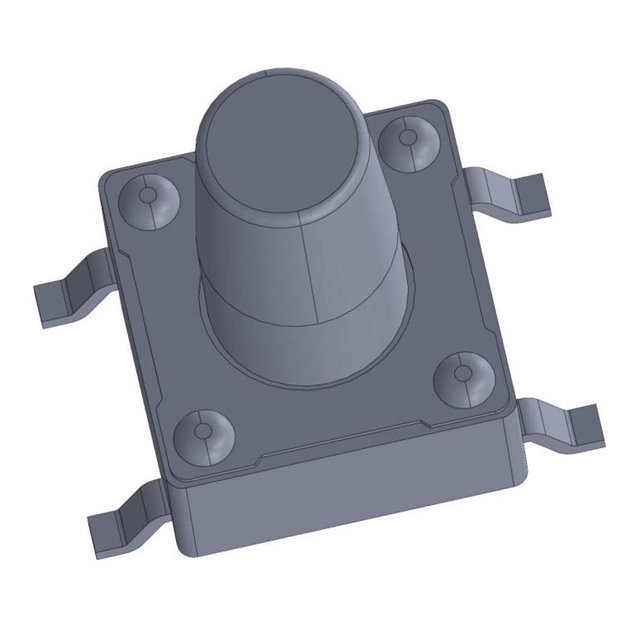

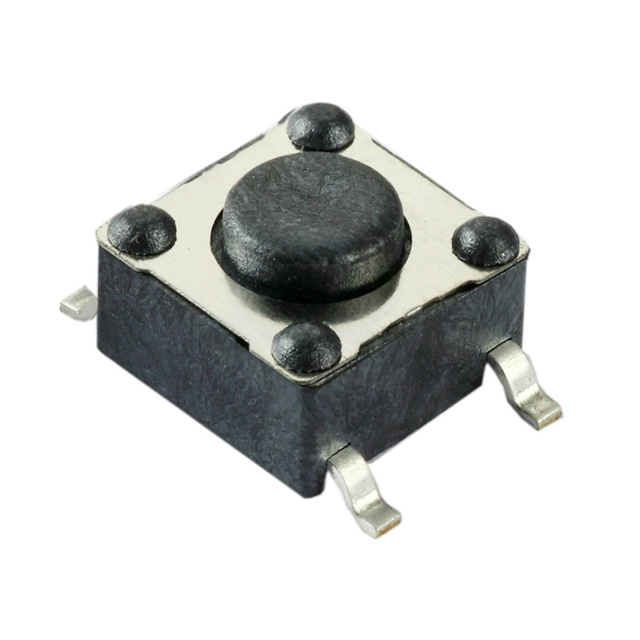

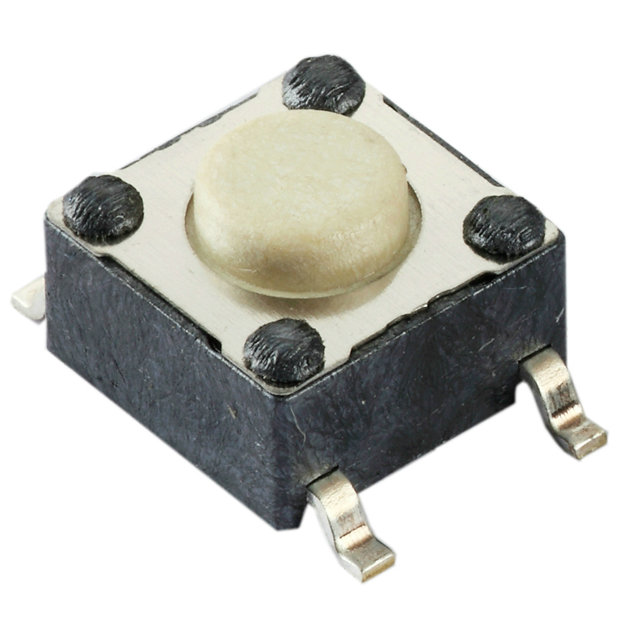

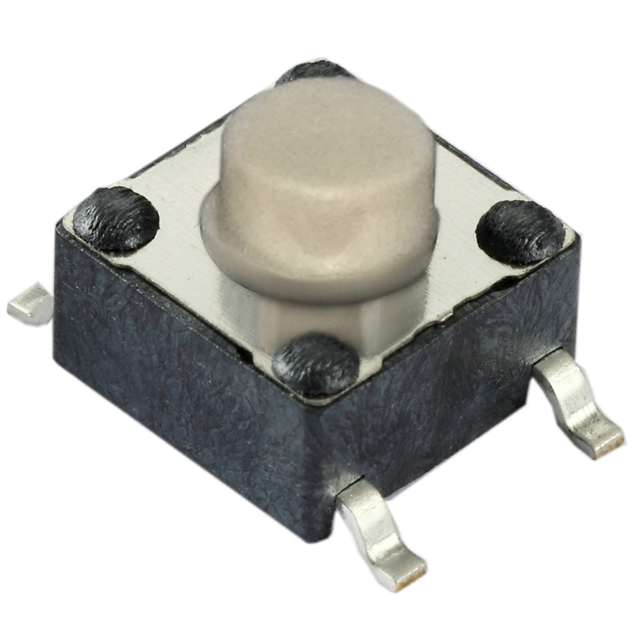

222AMV Series
Manufacturer: CTS Electrocomponents
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life (Cycles) | Switch Travel | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Circuit | Features | Actuator Type | Operating Force | Outline Length | Outline Width | Actuator Orientation | Contact Rating (Current) | Switch Function | Actuator Height off PCB (Vertical) | Illumination | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 1000000 Cycles | 0.25 mm | -40 °C | 85 °C | Surface Mount | SPST-NO | Tactile Feedback | Standard | 160 gf | 6.2 mm | 6.2 mm | Top Actuated | 0.05 A | Off-Mom | 4.3 mm | Non-Illuminated | Gull Wing |
 CTS Electrocomponents | 200000 Cycles | 0.25 mm | -40 °C | 85 °C | Surface Mount | SPST-NO | Tactile Feedback | Standard | 260 gf | 6.2 mm | 6.2 mm | Top Actuated | 0.05 A | Off-Mom | 9.5 mm | Non-Illuminated | Gull Wing |
 CTS Electrocomponents | 200000 Cycles | 0.25 mm | -40 °C | 85 °C | Surface Mount | SPST-NO | Tactile Feedback | Standard | 260 gf | 6.2 mm | 6.2 mm | Top Actuated | 0.05 A | Off-Mom | 4.3 mm | Non-Illuminated | Gull Wing |
 CTS Electrocomponents | 1000000 Cycles | 0.25 mm | -40 °C | 85 °C | Surface Mount | SPST-NO | Tactile Feedback | Standard | 160 gf | 6.2 mm | 6.2 mm | Top Actuated | 0.05 A | Off-Mom | 7 mm | Non-Illuminated | Gull Wing |
 CTS Electrocomponents | 200000 Cycles | 0.25 mm | -40 °C | 85 °C | Surface Mount | SPST-NO | Tactile Feedback | Standard | 260 gf | 6.2 mm | 6.2 mm | Top Actuated | 0.05 A | Off-Mom | 5 mm | Non-Illuminated | Gull Wing |
