PRPC033 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 33POS 2.54MM

Part	Contact Finish Thickness - Post	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Number of Positions [custom]	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Material	Mounting Type	Overall Contact Length	Overall Contact Length	Style	Contact Shape	Insulation Height	Insulation Height	Termination	Fastening Type	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Insulation Color	Number of Rows	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows [custom]	Overall Contact Length
Sullins Connector Solutions PRPC033SAAN-RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0	33	All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Through Hole	0.448 in	11.39 mm	Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	3.05 mm	0.12 in	Flash	Black	1	0.23 in	5.84 mm
Sullins Connector Solutions PRPC033SFAN-RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0	33	All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Through Hole			Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	3.05 mm	0.12 in	Flash	Black	1	0.318 in	8.08 mm	13.63 mm	0.537 in

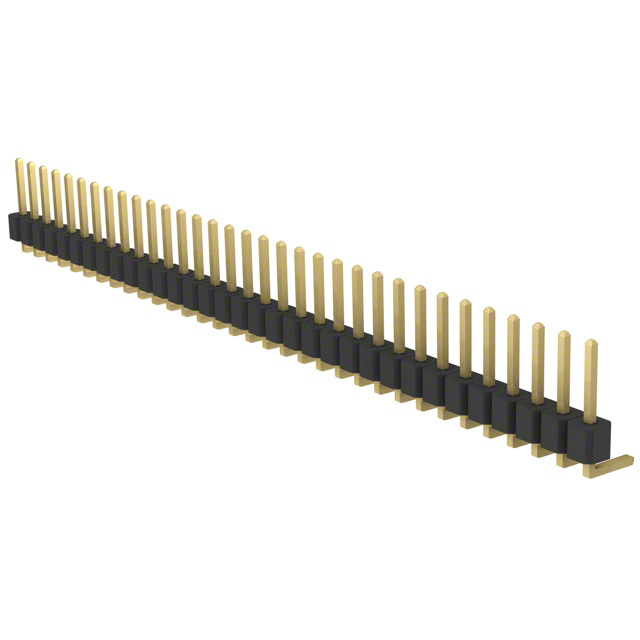

Sullins Connector Solutions PRPC033SBAN-M71RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0	33	All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Right Angle Through Hole			Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	3.05 mm	0.12 in	Flash	Black	1	0.23 in	5.84 mm

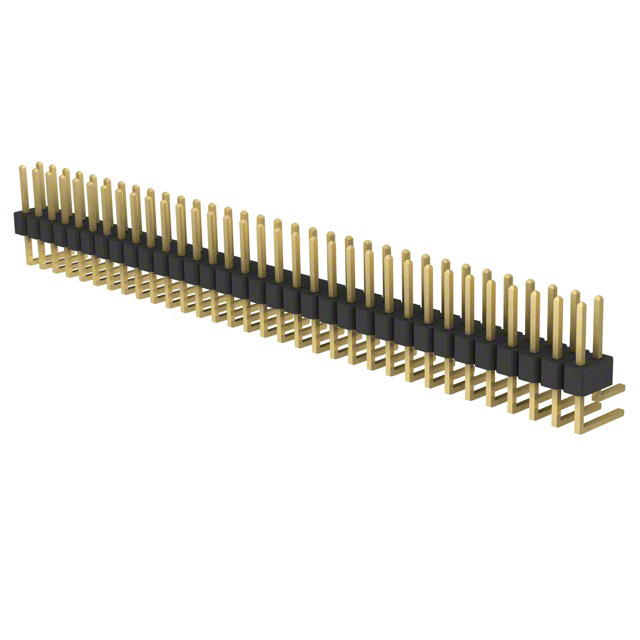

Sullins Connector Solutions PRPC033DBAN-M71RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0		All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Right Angle Through Hole			Board to Board Cable	Square	0.197 "	5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	3.05 mm	0.12 in	Flash	Black		0.23 in	5.84 mm			0.1 in	2.54 mm	66	2

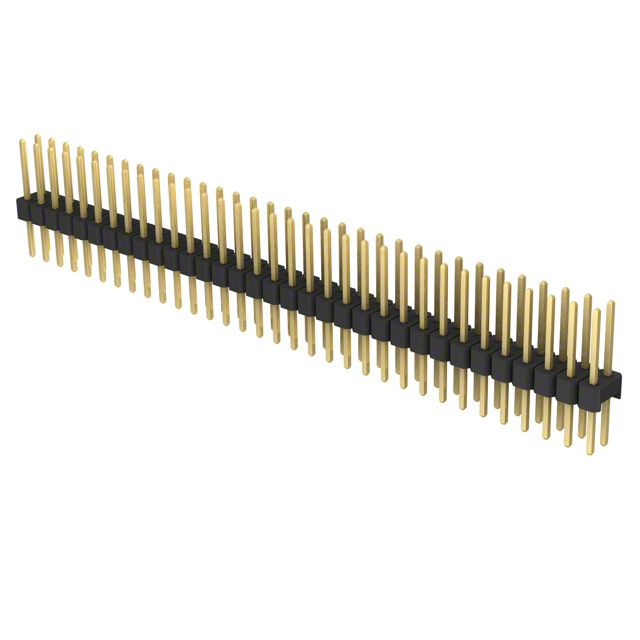

Sullins Connector Solutions PRPC033DFBN-RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0		All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Through Hole		0.637 in	Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	5.58 mm	0.22 in	Flash	Black		0.318 in	8.08 mm			0.1 in	2.54 mm	66	2	16.17 mm
Sullins Connector Solutions PRPC033DFAN-RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0		All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Through Hole			Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	3.05 mm	0.12 in	Flash	Black		0.318 in	8.08 mm	13.63 mm	0.537 in	0.1 in	2.54 mm	66	2

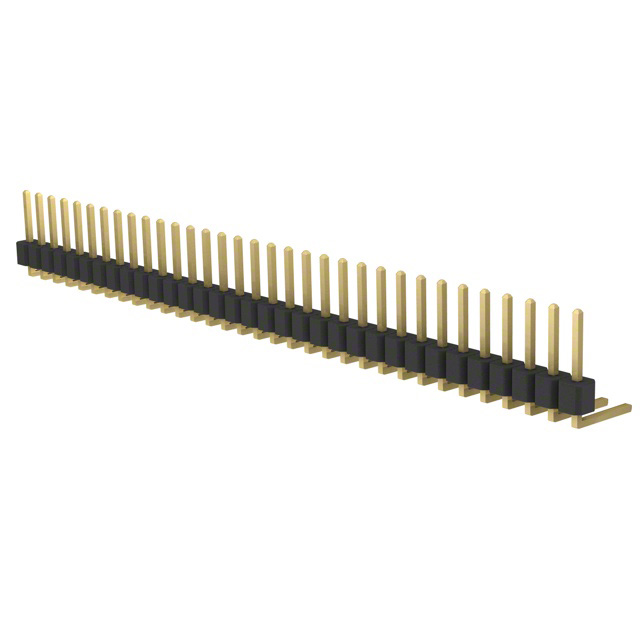

Sullins Connector Solutions PRPC033SBBN-M71RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0	33	All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Right Angle Through Hole			Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	5.58 mm	0.22 in	Flash	Black	1	0.23 in	5.84 mm

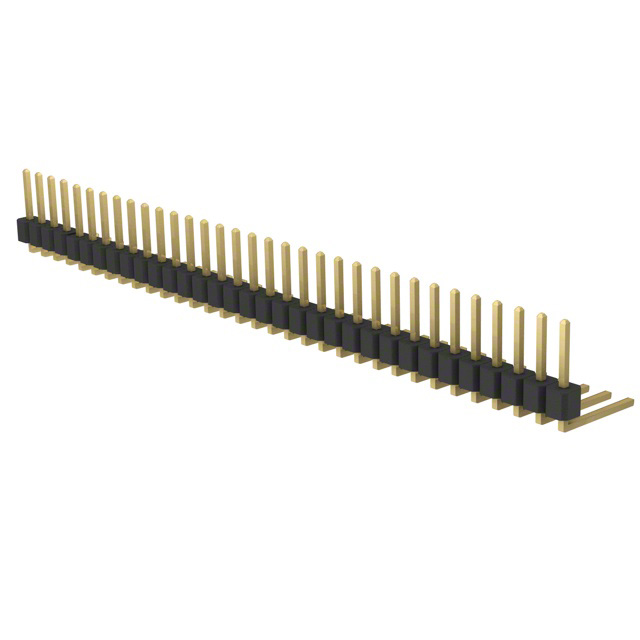

Sullins Connector Solutions PRPC033SBCN-M71RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0	33	All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Right Angle Through Hole			Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	8.13 mm	0.32 in	Flash	Black	1	0.23 in	5.84 mm
Sullins Connector Solutions PRPC033DABN-RC	Flash	Unshrouded	-40 C	105 ░C	Gold	3 A	UL94 V-0		All	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Brass	Through Hole	0.558 in	14.18 mm	Board to Board Cable	Square	0.098 "	2.5 mm	Solder	Push-Pull	Header Breakaway	Male Pin	5.84 mm	0.23 "	Flash	Black		0.23 in	5.84 mm			0.1 in	2.54 mm	66	2
