LB26CKW01 Series

Catalog

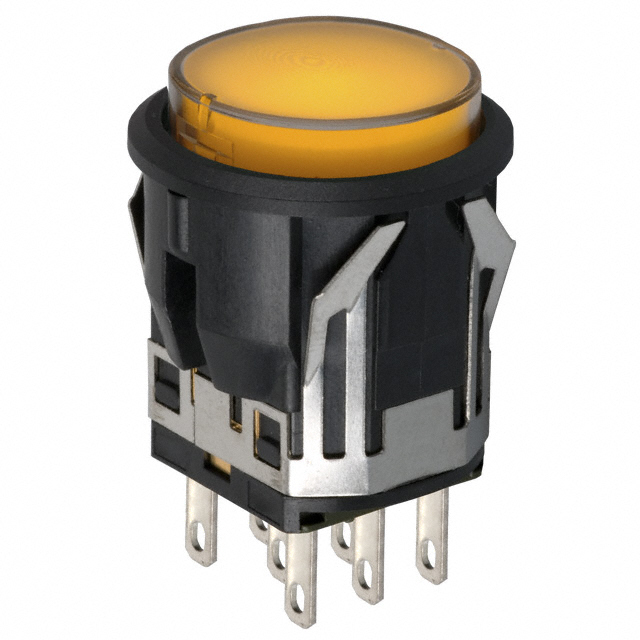

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-ON, ROUND, TRANSPARENT

Part	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Actuator Marking	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Voltage Rating - DC	Type	Current Rating (Amps)	Switch Function	Illumination Type, Color	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Termination Style
NKK Switches LB26CKW01-5C-JC	100000 Cycles	200000 Cycles	1.9 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	LED Red	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-1F-F	100000 Cycles	200000 Cycles	2.1 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	Green LED	DPDT	Green	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5D12-JD	100000 Cycles	200000 Cycles	12 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	Amber LED	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-C	100000 Cycles	200000 Cycles		No Marking	Button Round	Panel Mount Snap-In	70 °C	-25 °C	125 V	30 V	Standard	3 A	On-On		DPDT	Red	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5D05-JD	100000 Cycles	200000 Cycles	5 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	Amber LED	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5C12-JC	100000 Cycles	200000 Cycles	12 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	LED Red	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5C05-JC	100000 Cycles	200000 Cycles	5 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	LED Red	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5D-JD	100000 Cycles	200000 Cycles	2 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	Amber LED	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-6G-JB	100000 Cycles	200000 Cycles	3.6 VDC	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	Blue LED	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB26CKW01-5C24-JC	100000 Cycles	200000 Cycles	24 V	No Marking	Button Round	Panel Mount Snap-In	50 °C	-25 °C	125 V	30 V	Illuminated Standard	3 A	On-On	LED Red	DPDT	Clear	22 mm	Solder Quick Connect - 0.110" (2.8mm)
