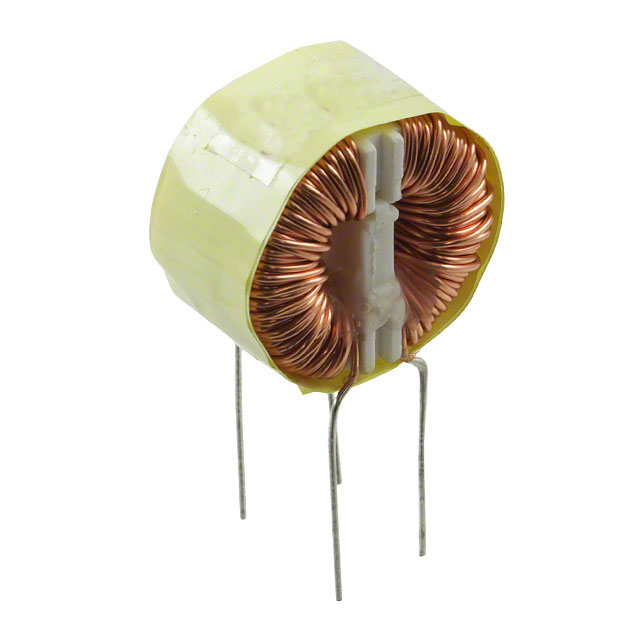

711 Series

Catalog

CMC 8MH 2A 2LN TH

Part	Package / Case	Package / Case	Current Rating (Max) [Max]	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)
Bourns Inc. 7116	No Base Vertical	2 Lead	2 A	2	-55 C	105 ░C	0.55 "	13.97 mm	20.32 mm	0.8 in	Through Hole	1 kHz 8 mH	200 mOhm
Bourns Inc. 7115	No Base Vertical	2 Lead	2 A	2	-55 C	105 ░C	0.55 "	13.97 mm	20.32 mm	0.8 in	Through Hole	5 mH		110 mOhm
Bourns Inc. 7117	No Base Vertical	2 Lead	5 A	2	-55 C	105 ░C	0.55 "	13.97 mm	20.32 mm	0.8 in	Through Hole	1 mH	35 mOhm
Bourns Inc. 7119	No Base Vertical	2 Lead	4 A	2	-55 C	105 ░C		20.32 mm	1.2 in 30.48 mm		Through Hole	5 mH	46 mOhm
