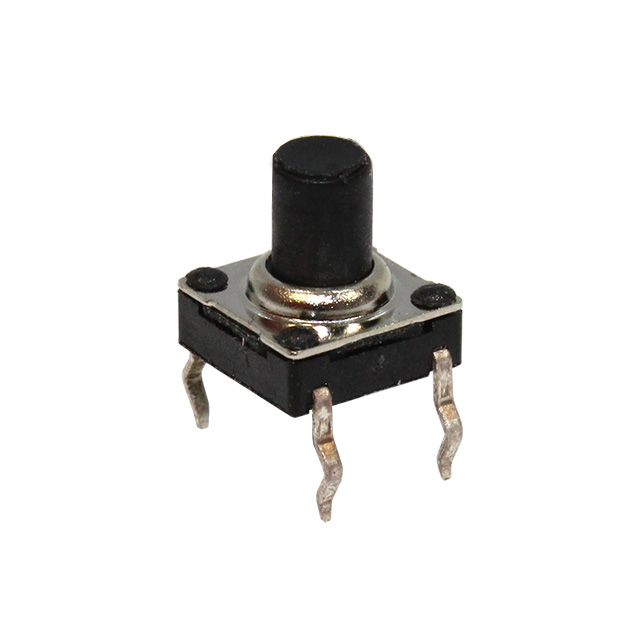

ST5.0L Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Actuator Material | Switch Travel | Actuator Height off PCB, Vertical [z] | Termination Style | Mounting Type | Outline [y] | Outline [x] | Switch Function | Actuator Type | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Circuit | Contact Rating @ Voltage | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Polybutylene Terephthalate (PBT) | 0.45 mm | 5 mm | PC Pin | Through Hole | 7.2 mm | 7.2 mm | Off-Mom | Standard | 260 gf | 85 °C | -40 C | Non-Illuminated | SPST-NO | 0.05 A 48 VDC | Top Actuated |
CIT Relay and Switch | Polybutylene Terephthalate (PBT) | 0.45 mm | 5 mm | PC Pin | Through Hole | 7.2 mm | 7.2 mm | Off-Mom | Standard | 160 gf | 85 °C | -40 C | Non-Illuminated | SPST-NO | 0.05 A 48 VDC | Top Actuated |
