M80-788 Series

Catalog

13+13 POS. FEMALE DIL 28-32AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Contact Finish	Wire Type	Cable Termination	Pitch [x]	Pitch [x]	Number of Rows [custom]	Connector Type	Row Spacing	Row Spacing	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Number of Positions
Harwin Inc. M80-7882601	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	26

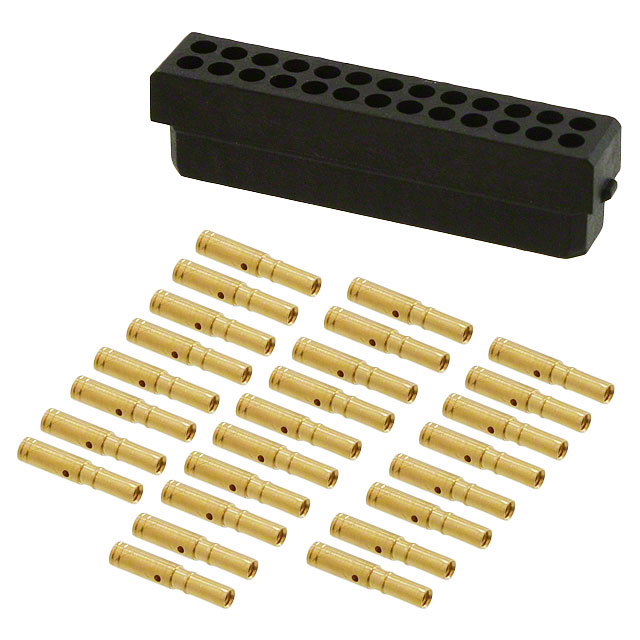

Harwin Inc. M80-7882605	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	26

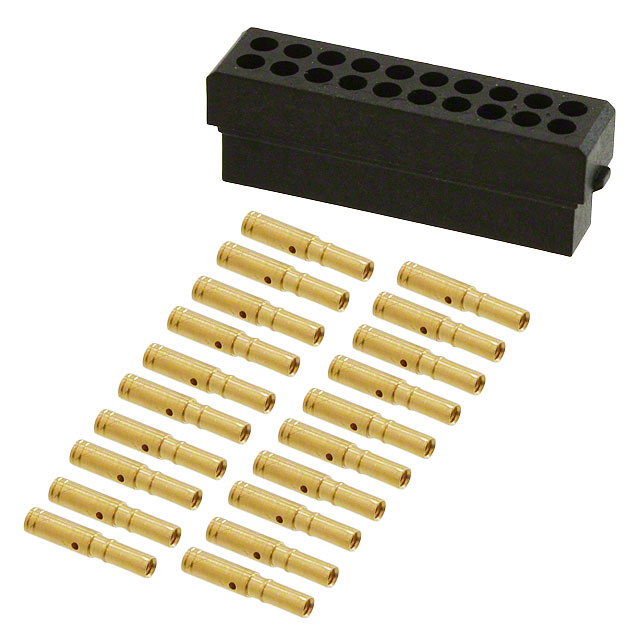

Harwin Inc. M80-7882005	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	20
Harwin Inc. M80-7881601	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	16

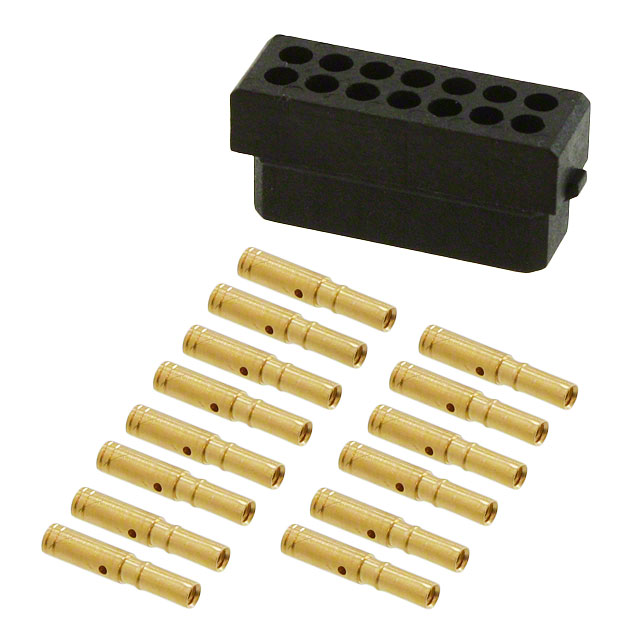

Harwin Inc. M80-7881405	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	14
Harwin Inc. M80-7880605	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	6
Harwin Inc. M80-7882001	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	20
Harwin Inc. M80-7880801	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	8
Harwin Inc. M80-7881801	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	18

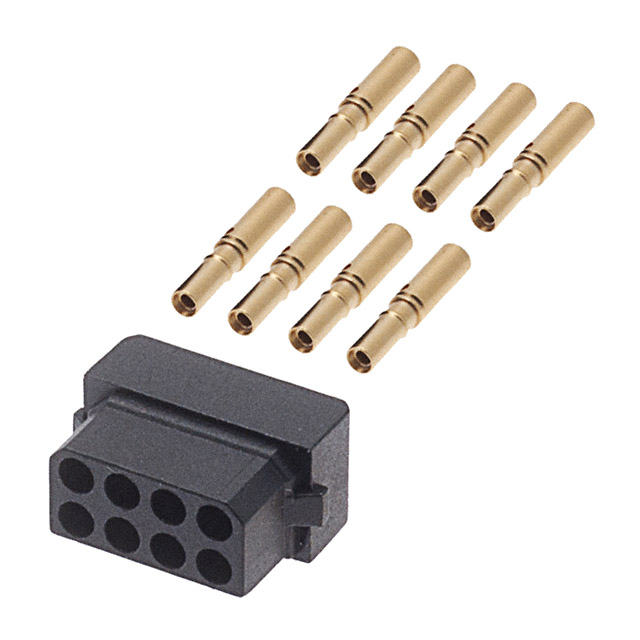

Harwin Inc. M80-7880805	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	Gold	Discrete	Crimp	0.079 in	2 mm	2	Receptacle	2 mm	0.079 in	Female Socket	27.5 AWG	32 AWG	Locking Ramp	8
