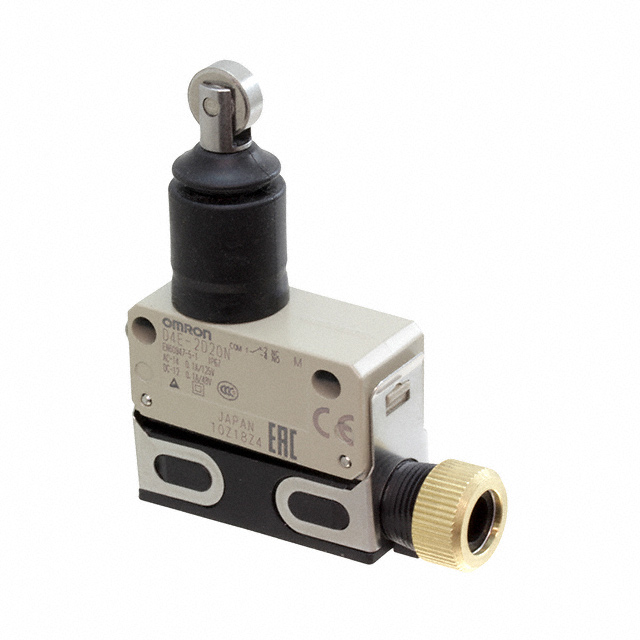

D4E-1D20 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Actuator Type | Voltage Rating - DC | Differential Travel | Differential Travel | Operating Force | Overtravel | Overtravel | Termination Style | Release Force | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mechanical Life | Circuit | Pretravel | Pretravel | Voltage Rating - AC | Operating Position | Operating Position | Electrical Life | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Roller Plunger | 30 V | 0.1 mm | 0.004 in | 1200 gf | 3 mm | 0.118 in | Screw Terminal | 500 gf | On-Mom | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 10000000 Cycles | SPDT | 1.5 mm | 0.06 in | 125 V | 1.625 in | 41.3 mm | 500000 Cycles | 5 A | Chassis Mount |
