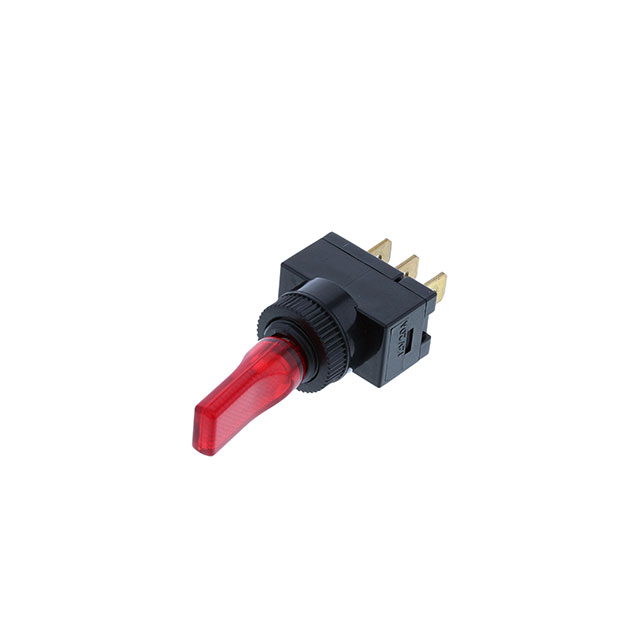

TE5-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH TOGGLE SPST 20A 12V
| Part | Electrical Life (Cycles) | Actuator Material | Actuator Type | Panel Cutout Diameter | Panel Cutout Shape | Bushing Thread Diameter | Bushing Thread | Bushing Thread Pitch | Illumination | Switch Function | Color | Illumination Type | Quick Connect Size (0.250") | Termination Style | Mounting Type | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Illumination Voltage (Nominal) | Circuit | Actuator Length | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | Polycarbonate (PC) | Flatted | 12.2 mm | Circular | 12 mm | M12 x 1 | 1 mm | Illuminated | On-Off | Red | LED | 0.25 in | Quick Connect | Panel Mount | 20 A | 85 °C | -25 °C | 12 V | SPST | 25 mm | 12 V |
