92009 Series

Catalog

RCPT HSG METRIC INTERCONN SYS

Part	Note	Number of Rows	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Mounting Type	Contact Termination	Contact Type	Pitch	Pitch	Insulation Material

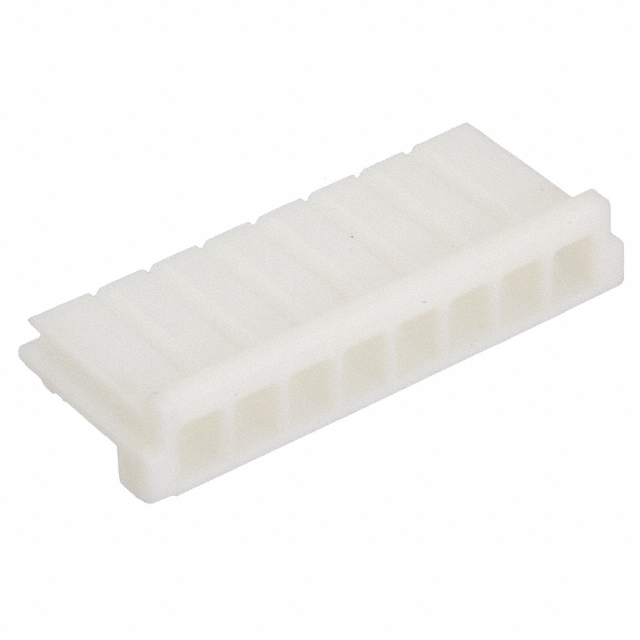

TE Connectivity AMP Connectors 92009-8	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	8	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)

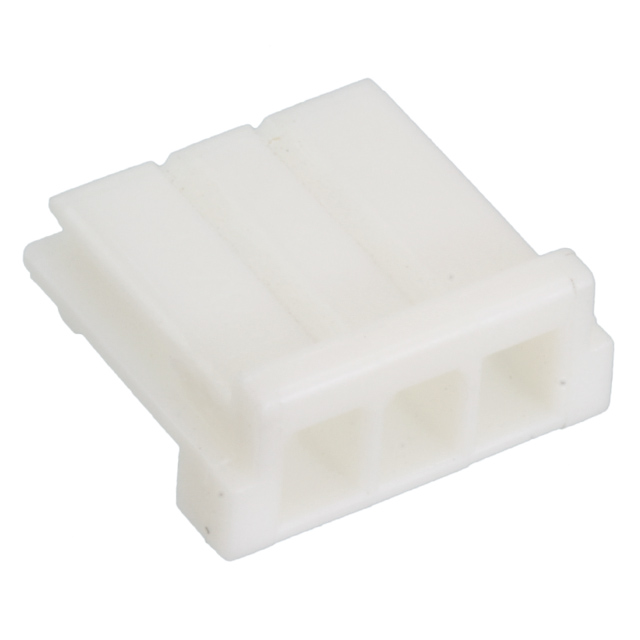

TE Connectivity AMP Connectors 92009-3	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle		Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors 92009-6	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	6	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)

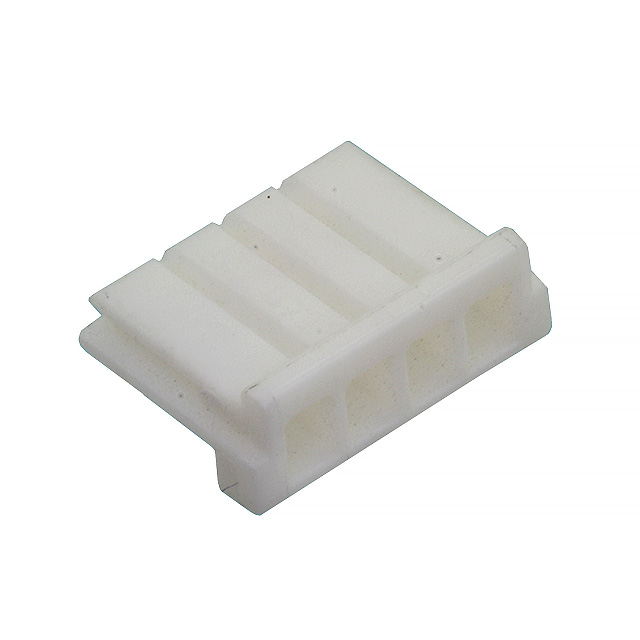

TE Connectivity AMP Connectors 92009-4	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	4	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors 1-92009-0	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	10	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 1-92009-4	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	14	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 92009-2	Contacts Not Included	1	Natural	105 ░C	-25 °C	Receptacle	2	Free Hanging (In-Line)	Crimp	Female Socket	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)
