1CH-A Series

Manufacturer: Adam Tech

Catalog

CONN RCPT HSG 4POS 1.00MM

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Insulation Material	Fastening Type	Mounting Type	Number of Rows	Contact Type	Color	Number of Positions	Connector Type	Pitch	Pitch

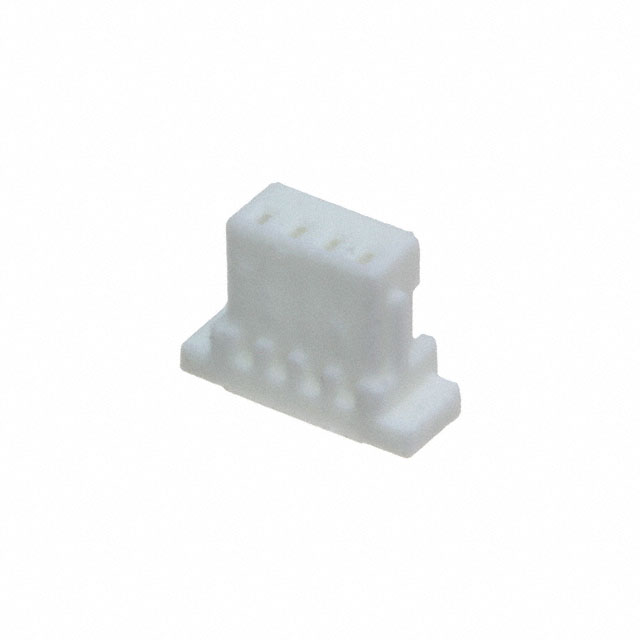

Adam Tech 1CH-A-04	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	4	Receptacle	1 mm	0.039 in
Adam Tech 1CH-A-06	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	6	Receptacle	1 mm	0.039 in

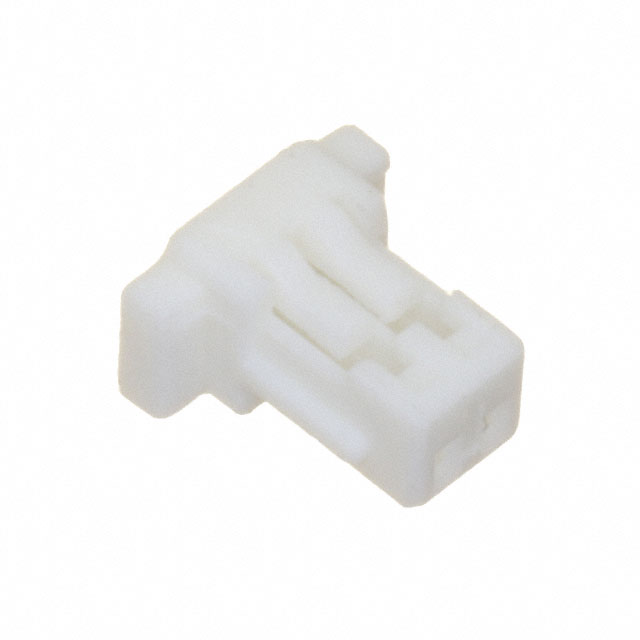

Adam Tech 1CH-A-02	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	2	Receptacle	1 mm	0.039 in

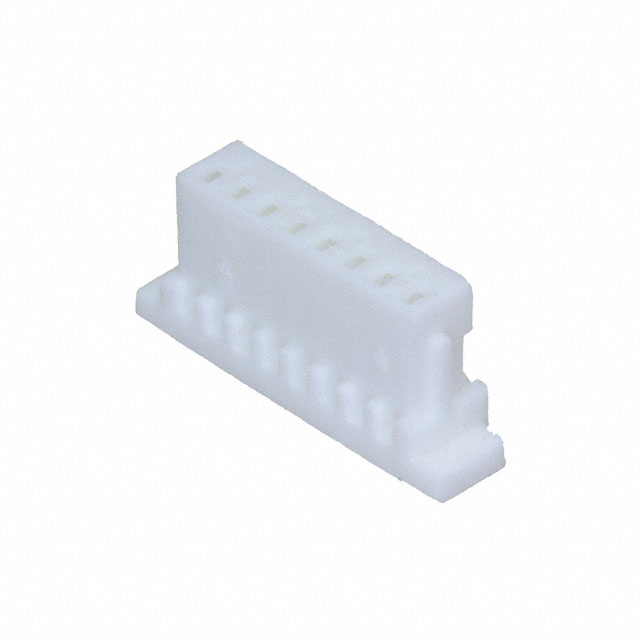

Adam Tech 1CH-A-08	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	8	Receptacle	1 mm	0.039 in
Adam Tech 1CH-A-05	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	5	Receptacle	1 mm	0.039 in

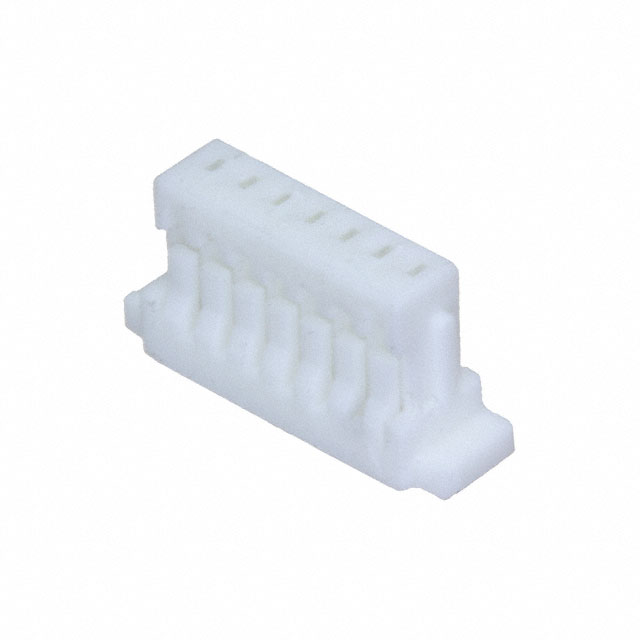

Adam Tech 1CH-A-07	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	7	Receptacle	1 mm	0.039 in

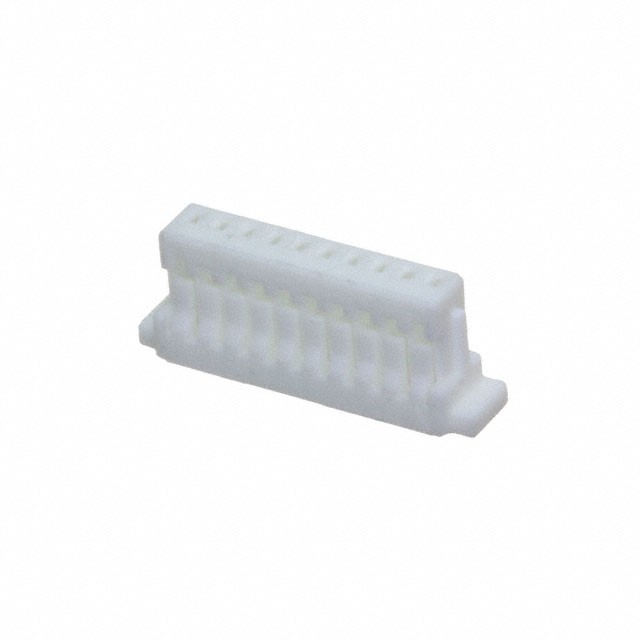

Adam Tech 1CH-A-10	Contacts Not Included	85 °C	-25 °C	Crimp	Nylon 6/6 Polyamide (PA66)	Friction Lock	Free Hanging (In-Line)	1	Female Socket	White	10	Receptacle	1 mm	0.039 in
