191-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

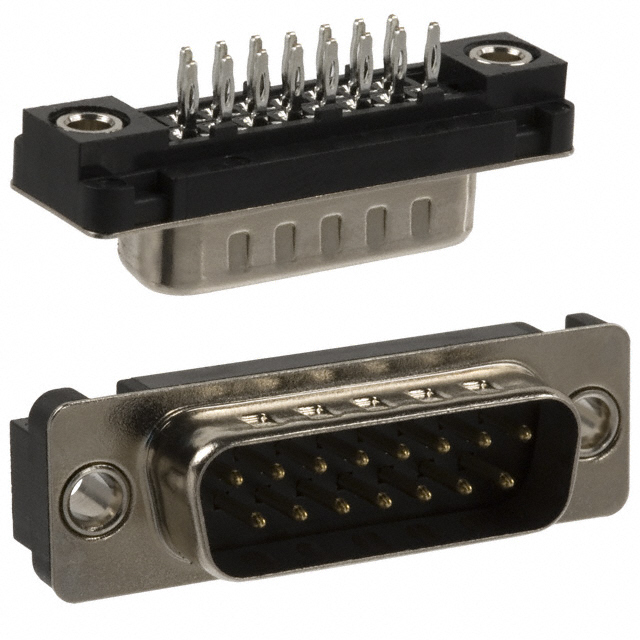

CONN D-SUB PLG 15POS PNL MT SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Number of Rows [custom] | Connector Type | Material Flammability Rating | Shell Material, Finish | Connector Style | Number of Positions | Termination | Flange Feature | Mounting Type | Contact Type | Shell Size, Connector Layout | Current Rating (Amps) | Features | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polyester Thermoplastic | Brass | -55 C | 125 °C | Flash | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | Signal | 2 | 5 A | Grounding Indents Shielded | Gold | |
NorComp Inc. | Black | Polyester Thermoplastic | Phosphor Bronze | -55 C | 125 °C | Flash | 2 | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | Signal | 2 | 5 A | Shielded | Gold | |
 NorComp Inc. | Black | Polyester Thermoplastic | Phosphor Bronze | -55 C | 125 °C | Flash | 2 | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | Housing/Shell | Panel Mount Through Hole | Signal | 2 | 5 A | Shielded | Gold | 4-40 |
 NorComp Inc. | Black | Polyester Thermoplastic | Brass | -55 C | 125 °C | Flash | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Press-Fit | Housing/Shell (Unthreaded) | Panel Mount | Signal | 2 | 5 A | Grounding Indents Shielded | Gold | |
NorComp Inc. | Black | Polyester Thermoplastic | Brass | -55 C | 125 °C | Flash | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | Housing/Shell | Panel Mount Through Hole | Signal | 2 | 5 A | Board Lock Grounding Indents | Gold | 4-40 |
NorComp Inc. | Black | Polyester Thermoplastic | Phosphor Bronze | -55 C | 125 °C | Flash | 2 | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | Signal | 2 | 5 A | Board Lock | Gold | |
NorComp Inc. | Black | Polyester Thermoplastic | Brass | -55 C | 125 °C | Flash | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | Housing/Shell | Panel Mount Through Hole | Signal | 2 | 5 A | Grounding Indents Shielded | Gold | 4-40 |
NorComp Inc. | Black | Polyester Thermoplastic | Brass | -55 C | 125 °C | Flash | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Solder | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Signal | 2 | 5 A | Grounding Indents | Gold | |
NorComp Inc. | Black | Polyamide (PA6T) Nylon 6T | Phosphor Bronze | -55 C | 125 °C | Flash | 2 | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Press-Fit | Housing/Shell (Unthreaded) | Panel Mount | Signal | 2 | 5 A | Shielded | Gold | |
NorComp Inc. | Black | Polyamide (PA6T) Nylon 6T | Phosphor Bronze | -55 C | 125 °C | Flash | 2 | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | D-Sub | 15 | Press-Fit | 4-40 Mating Side Female Screwlock | Panel Mount | Signal | 2 | 5 A | Board Lock Shielded | Gold |
