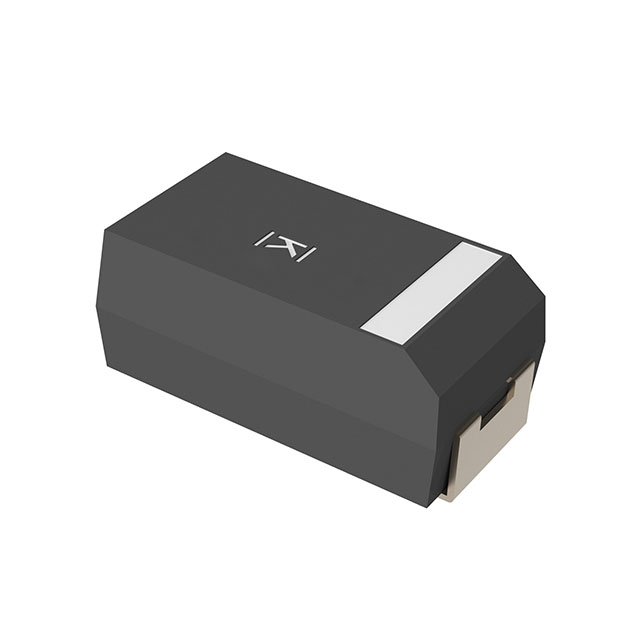

T591B Series

Manufacturer: KEMET

Catalog

TANTALUM POLYMER CAPACITOR, 22 ΜF, ± 20%, 6.3 V, B, 0.07 OHM, 1411 [3528 METRIC]

Part	Tolerance	Features	Capacitance	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Manufacturer Size Code	Package / Case	Package / Case	Type	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type
KEMET T591B226M006ATE070	20 %	General Purpose	22 µF	6.3 VDC	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B107M006ATE0707280	20 %	General Purpose	100 µF	6.3 VDC	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B157M006ATE070	20 %	General Purpose	150 µF	6.3 VDC	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B475M035ATE200	20 %	General Purpose	4.7 µF	35 V	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	1000 Hrs	200 mOhm	Surface Mount
KEMET T591B476M010ATE070	20 %	General Purpose	47 µF	10 V	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B336M006ATE080	20 %	General Purpose	33 ÁF	6.3 VDC	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	80 mOhm	Surface Mount
KEMET T591B336M010ATE070	20 %	General Purpose	33 ÁF	10 V	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B107M006ATE070	20 %	General Purpose	100 µF	6.3 VDC	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B107M004ATE0707280	20 %	General Purpose	100 µF	4 V	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	70 mOhm	Surface Mount
KEMET T591B107M004ATE045	20 %	General Purpose	100 µF	4 V	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	B	3528 Metric	1411	Molded	2000 Hrs	45 mOhm	Surface Mount
