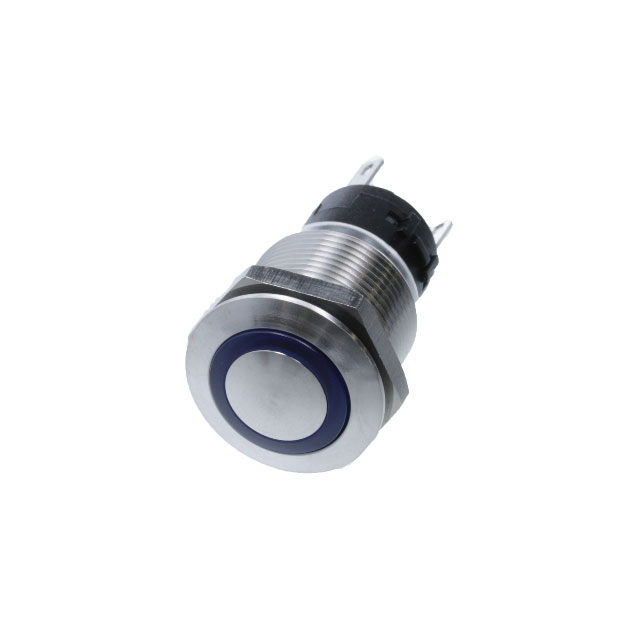

PD-2E-D Series
Manufacturer: Switch Components
Beta
⌘K
ANTI VANDAL DPDT ON-(ON) - IP67
| Part | Electrical Life | Mechanical Life | Termination Style | Illumination Type, Color | Voltage Rating - DC | Type | Panel Cutout Dimensions [diameter] | Ingress Protection | Actuator Marking | Switch Function | Color - Actuator/Cap | Illumination Voltage (Nominal) | Current Rating (Amps) | Actuator Type | Mounting Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Steps | Quick Connect - 0.110" (2.8mm) | Blue LED | 14 V | Illuminated Standard | 19 mm | IP67 - Dust Tight Waterproof | No Marking | On-Mom | Silver | 12 VDC | 10 A | Button Round | Panel Mount Front | DPDT | -20 ░C | 70 °C |
 Switch Components | 6000 Cycles | 10000 Steps | Quick Connect - 0.110" (2.8mm) | LED Red | 14 V | Illuminated Standard | 19 mm | IP67 - Dust Tight Waterproof | No Marking | On-Mom | Silver | 12 VDC | 10 A | Button Round | Panel Mount Front | DPDT | -20 ░C | 70 °C |
