AFB Series

Catalog

DC FANS DC TUBEAXIAL FAN, 60X25MM, 12VDC, BALL BEARING, 3X LEAD WIRES, TACHOMETER

Part	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Frame	Approval Agency	Noise	Size / Dimension [z]	Size / Dimension [x]	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Fan Type	Width [y]	Weight	Weight	Features	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Termination	Voltage - Rated	Static Pressure	Weight [custom]	Weight [custom]	Weight [custom]	Weight [custom]	Size / Dimension	Size / Dimension [y]	Ingress Protection
Delta Electronics AFB0612VH-AF00	0.23 A	Plastic	4 VDC	13.8 VDC	70000 Hrs	Plastic	CE CSA UL VDE	42.5 dB	60 mm	60 mm	5500 RPM	0.854 m³/min	30.5 CFM	0.345 in H2O	85.9 Pa	Tubeaxial	25.4 mm	0.176 lb	80 g	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	-10 °C	2.76 W	3 Wire Leads	12 VDC

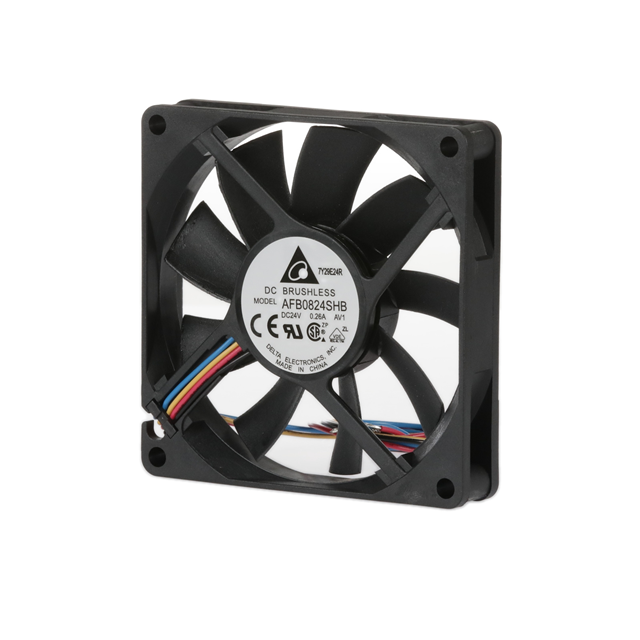

Delta Electronics AFB0824SHBAV1		Plastic	14 VDC	26 VDC	70000 Hrs	Plastic	CE CSA UL VDE	42.5 dB	80 mm	80 mm	4000 RPM	1.2 m³/min	42.7 CFM	53.8 Pa		Tubeaxial	15 mm	0.128 lb	58.06 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	60 °C	-10 °C	3.84 W	4 Wire Leads	24 VDC	0.216 in H2O
Delta Electronics AFB0812HH	0.2 A	Plastic	7 V	13.8 VDC	70000 Hrs	Plastic	CE CSA UL VDE	34 dB(A)	80 mm	80 mm	3250 RPM	1.05 m³/min	37.4 CFM	45.1 Pa		Tubeaxial	25.4 mm	0.176 lb	80 g		Ball	70 °C	-10 °C	2.4 W	2 Wire Leads	12 VDC	0.181 in H2O
Delta Electronics AFB0612LC		Plastic	7 V	13.8 VDC	70000 Hrs	Plastic	CE CSA UL VDE	24 dB	60 mm	60 mm	3000 RPM	0.431 m³/min	15.4 CFM	20.6 Pa		Tubeaxial	13 mm	0.074 lb	33.56 g		Ball	70 °C	-10 °C	960 mW	2 Wire Leads	12 VDC	0.083 in H2O
Delta Electronics AFB0405HHA-A	0.09 A	Plastic	4 VDC	5.5 V	70000 Hrs	Plastic	CE CSA UL VDE	31.5 dB	40 mm	40 mm	7000 RPM	0.23 mł/min	8.2 CFM	47.3 Pa		Tubeaxial	10 mm	0.031 lb	14.06 g		Ball	70 °C	-10 °C	450 mW	2 Wire Leads	5 V	0.19 in H2O
Delta Electronics AFB0712SH-AF00	0.63 A	Plastic	5 VDC	13.8 VDC	70000 Hrs	Plastic	CE CSA UL VDE	50.5 dB(A)	70 mm	70 mm	6300 RPM	1.71 m³/min	61.1 CFM	155.7 Pa		Tubeaxial	25.4 mm	0.238 lb	107.95 g	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	-10 °C	7.56 W	3 Wire Leads	12 VDC	0.625 in H2O
Delta Electronics AFB1212ME							CE CSA UL VDE	38 dB(A)	120 mm	120 mm	2300 RPM	2.66 m³/min	95 CFM	58.8 Pa		Tubeaxial	38 mm	0.565 lb	256.28 g		Ball	60 °C	-10 °C	3.12 W	2 Wire Leads	12 VDC	0.236 in H2O
Delta Electronics AFB0505MD							CE CSA UL VDE	28 dB	50 mm	50 mm	4800 RPM	0.375 mł/min	13.4 CFM	34 Pa		Tubeaxial	20 mm				Ball				2 Wire Leads	5 V	0.137 in H2O	0.085 lb	38.56 g
Delta Electronics AFB1512EHYVB							CE cURus VDE	61.5 dB(A)		172 mm	4300 RPM	8.14 m³/min	290.6 CFM	204.5 Pa		Tubeaxial	25.4 mm			Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	70 °C	-10 °C	36 W	4 Wire Leads	12 VDC	0.821 in H2O			430.01 g	0.948 lb	Rectangular/Rounded	150 mm

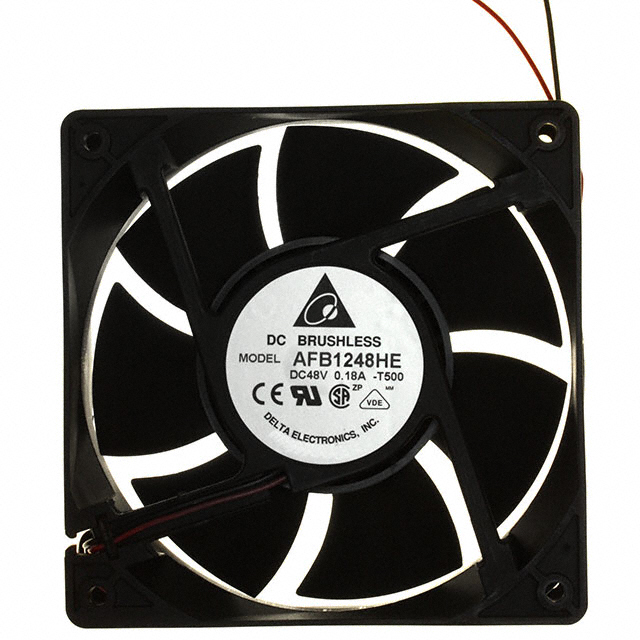

Delta Electronics AFB1248HE-T500	120 mA	Plastic	28 V	56 VDC	70000 Hrs	Plastic	CE CSA UL VDE	41 dB	120 mm	120 mm	2600 RPM	2.97 m³/min	105.9 CFM	74.7 Pa		Tubeaxial	38 mm	0.565 lb	256.28 g		Ball	60 °C	-10 °C	5.76 W	2 Wire Leads	48 VDC	0.3 in H2O							IP55 - Dust Protected Water Resistant
