25T-40SJ Series
Manufacturer: Encoder Products Company
Beta
⌘K

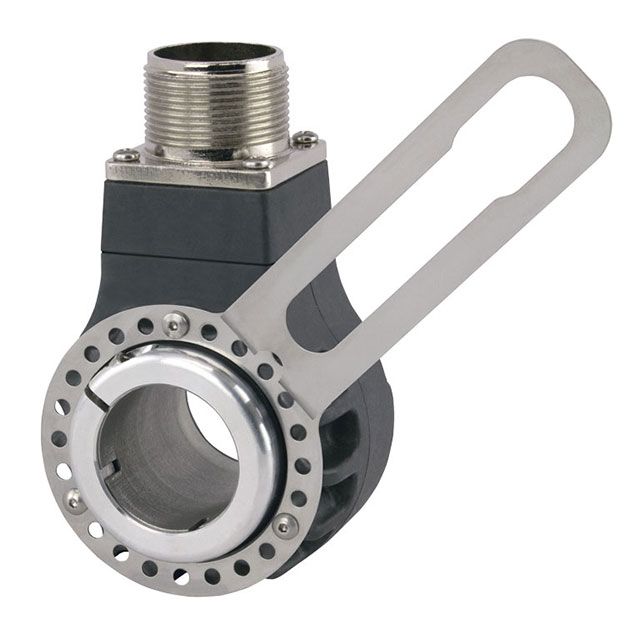

2.5" DIA. 1" DIA. BORE 1.75" TO
| Part | Detent | Encoder Type | Termination Style | Actuator Type | Actuator Diameter | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Built in Switch | Output Type | Orientation | Pulses per Revolution | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Open Collector | User Selectable | 1024 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 60 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 1000 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 600 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 4096 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Open Collector | User Selectable | 1000 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Open Collector | User Selectable | 120 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 1024 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Open Collector | User Selectable | 3600 | Chassis Mount Motors |
Encoder Products Company | No | Incremental | PC Pin | Thru-Bore | 1 in | 28 V | 5 V | No | Quadrature Line Driver with Index (Incremental) | User Selectable | 120 | Chassis Mount Motors |
