XAP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN RCPT HSG 9POS 2.50MM
| Part | Note | Color | Number of Rows | Fastening Type | Connector Type | Contact Type | Number of Positions | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

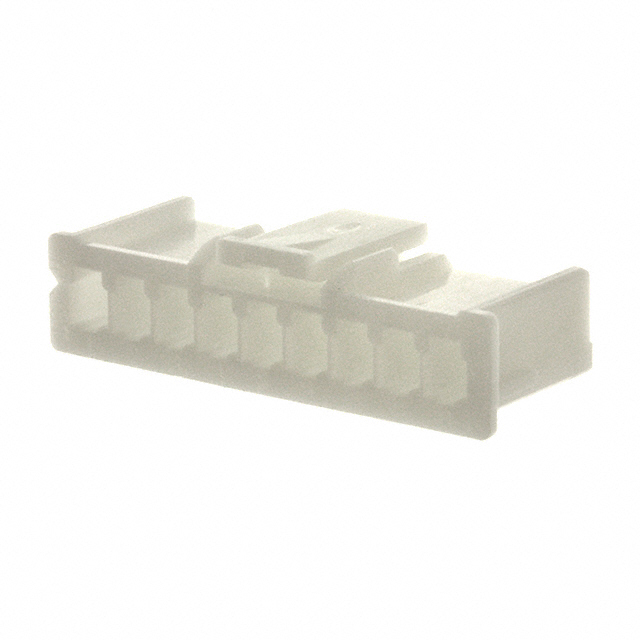

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 9 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

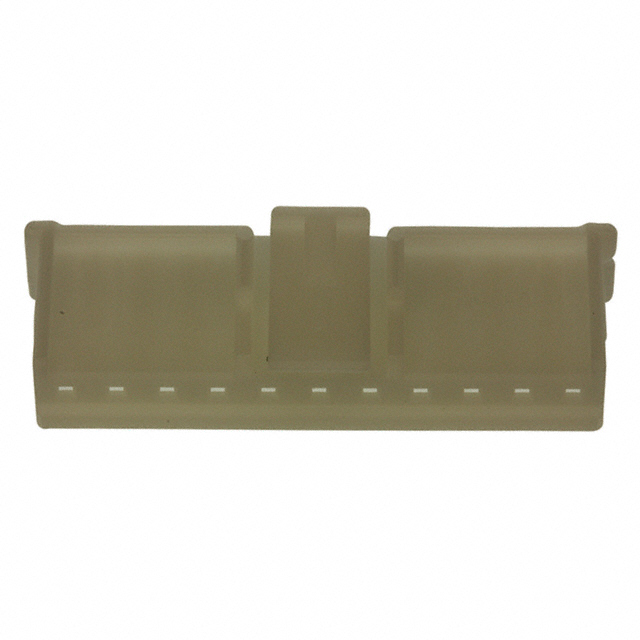

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 11 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp | |

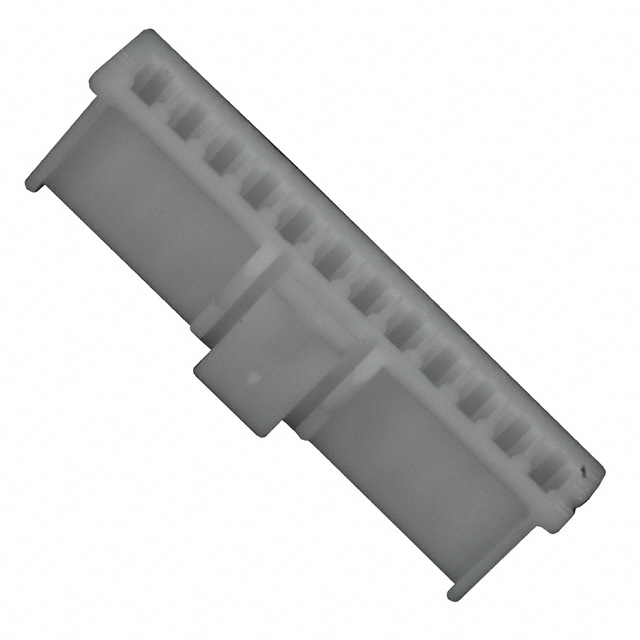

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 12 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 20 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

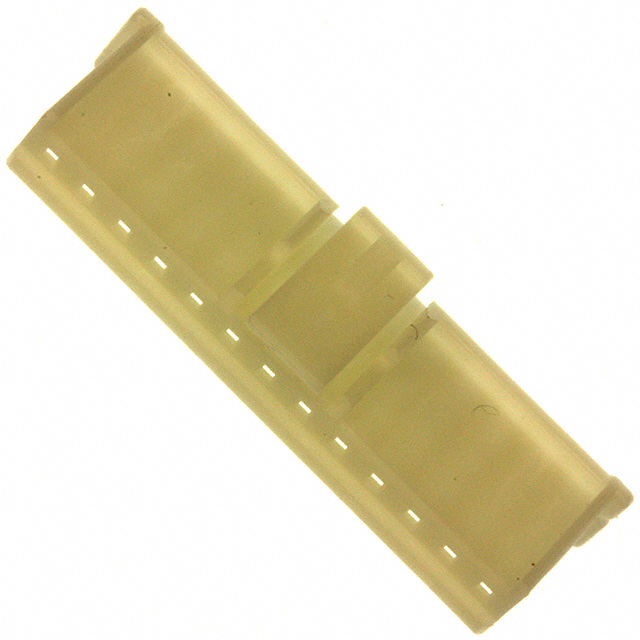

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 13 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

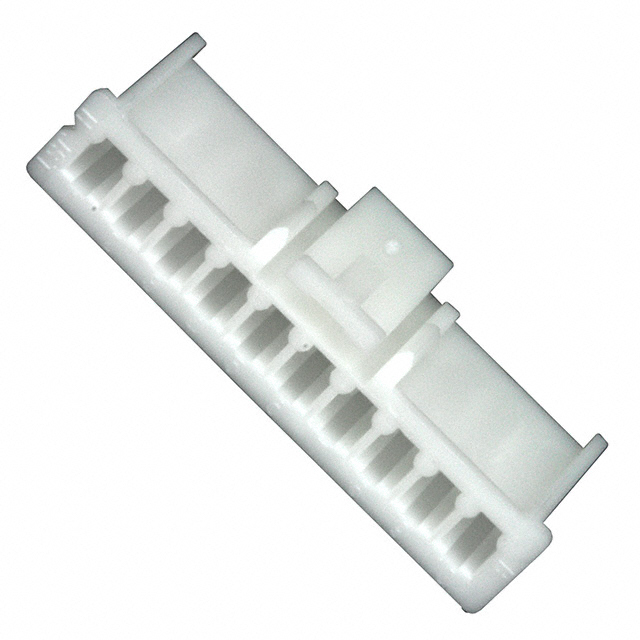

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 10 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

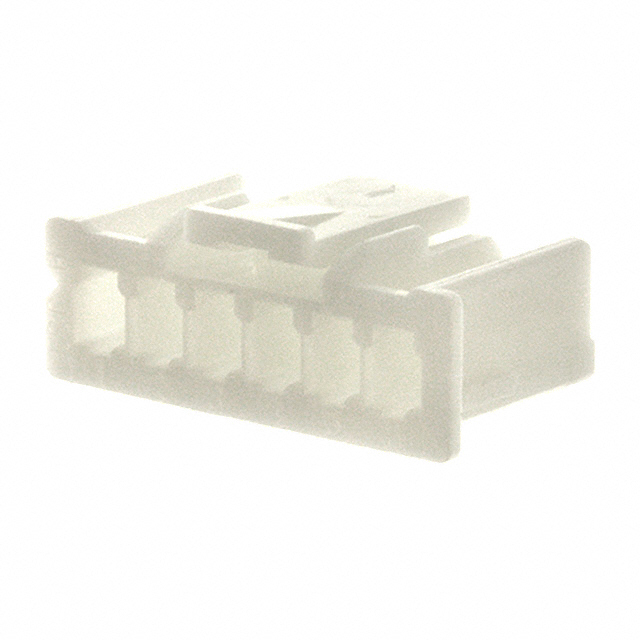

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 6 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

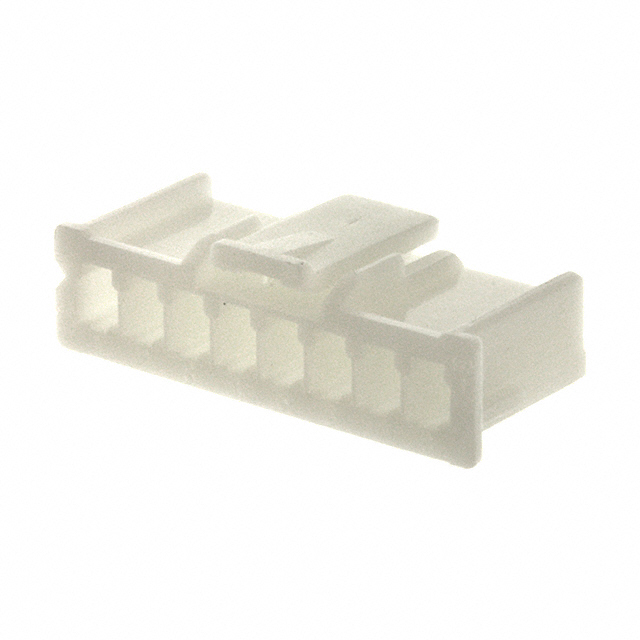

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 8 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |

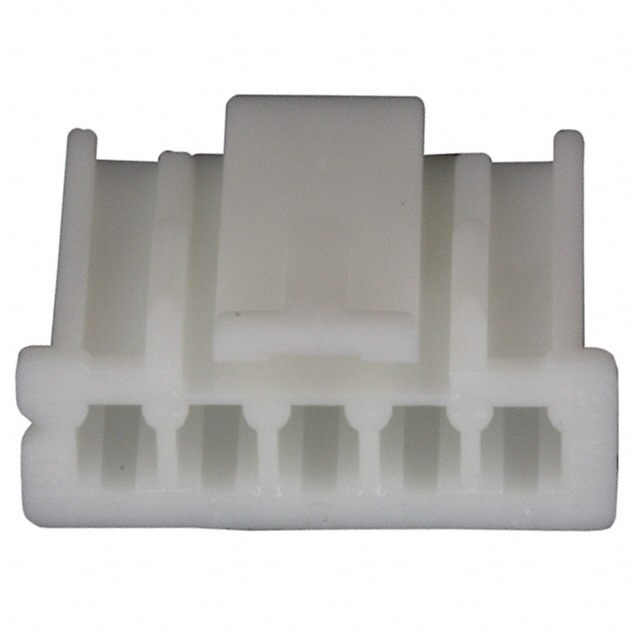

 JST Sales America Inc. | Contacts Not Included | Natural | 1 | Latch Lock | Receptacle | Female Socket | 5 | 2.5 mm | 0.098 in | 85 °C | -25 °C | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
