1243/2C Series

Catalog

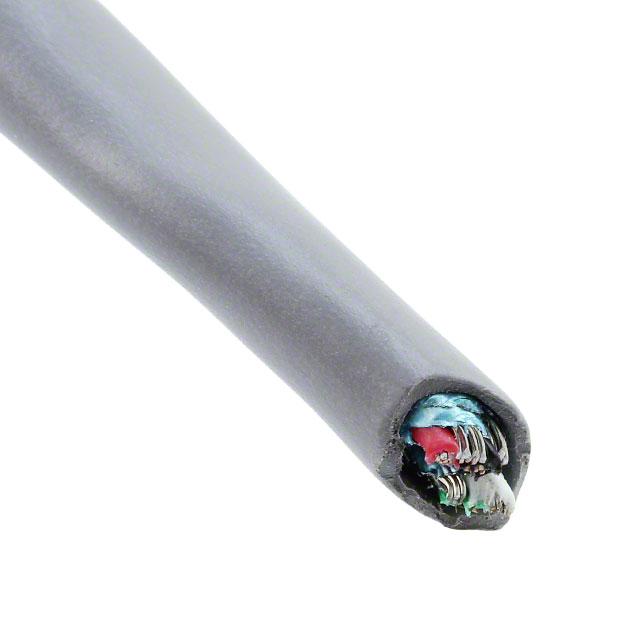

MULTI-CONDUCTOR CABLES 22 AWG, 2 PAIR COMMUNICATION CABLE, SHIELDED, 500 FT - SLATE

Part	Shield Coverage	Shield Material	Usage	Cable Type	Jacket Color	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Length	Length	Wire Gauge	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 1243/2C SL002	100 %	Aluminum	Communication Control	Multi-Pair	Slate	Foil	30 AWG	7	Polypropylene (PP)	0.03 in	0.762 mm	300 VDC	80 °C	-20 ░C	Copper Tinned	4	Poly-Vinyl Chloride (PVC)	152.4 m	500 ft	22 AWG	Drain Wire	0.245 "	6.22 mm
ALPHA WIRE 1243/2C SL005	100 %	Aluminum	Communication Control	Multi-Pair	Slate	Foil	30 AWG	7	Polypropylene (PP)	0.03 in	0.762 mm	300 VDC	80 °C	-20 ░C	Copper Tinned	4	Poly-Vinyl Chloride (PVC)			22 AWG	Drain Wire	0.245 "	6.22 mm	100 ft	30.5 m
