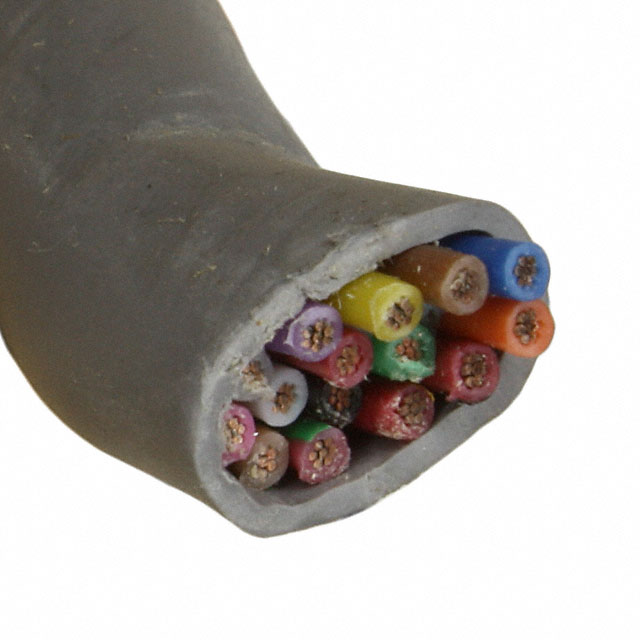

1181/15C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR UNSHIELDED CABLE, CONTROL, 15, 22 AWG, 0.35 MM , 7 X 0.255MM, 500 FT, 152.4 M ROHS COMPLIANT: YES
| Part | Usage | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Insulation | Length | Length | Jacket (Insulation) Material | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Communication Control | 22 AWG | Multi-Conductor | 30 AWG | 7 | 80 °C | -20 ░C | 15 | 0.294 in | 7.47 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 150 V | Slate | 0.813 mm | 0.032 in |
ALPHA WIRE | Communication Control | 22 AWG | Multi-Conductor | 30 AWG | 7 | 80 °C | -20 ░C | 15 | 0.294 in | 7.47 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 150 V | Slate | 0.813 mm | 0.032 in |
