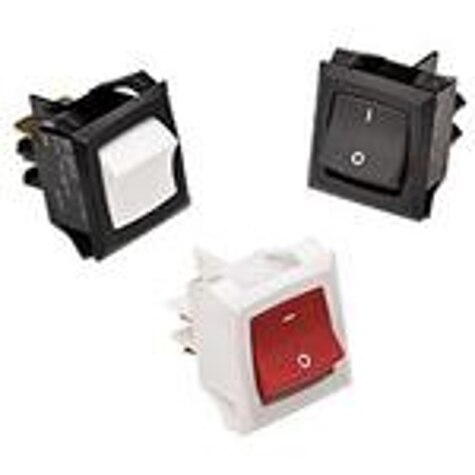

Rocker Switches RGSCB211RBBB
Rocker Switches RGSCB211RBBB
| Part | Circuit | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Actuator Type | Voltage Rating - AC | Color - Actuator/Cap | Current Rating (Amps) | Mounting Type | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | DPDT | CSA UL VDE | 85 °C | -40 C | O - | On-On | 25.4 mm | 28.58 mm | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 125 V | Black | 15 A | Panel Mount Snap-In | |
 Carling Technologies | DPST | CSA UL VDE | 85 °C | -40 C | No Marking | On-Off | 25.4 mm | 28.58 mm | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 125 V | Black | 20 A | Panel Mount Snap-In | |
Carling Technologies | DPST | CSA UL VDE | 85 °C | -40 C | O - | On-Off | 25.4 mm | 28.58 mm | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 125 V | White | 20 A | Panel Mount Snap-In | 50000 Cycles |
Carling Technologies | DPST | CSA UL VDE | 85 °C | -40 C | O - | On-Off | 25.4 mm | 28.58 mm | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 125 V | Red | 20 A | Panel Mount Snap-In | |
Carling Technologies | DPST | CSA UL VDE | 85 °C | -40 C | No Marking | On-Off | 25.4 mm | 28.58 mm | Quick Connect - 0.250" (6.3mm) | Paddle | 125 V | Black | 20 A | Panel Mount Snap-In |
