HSME Series

Catalog

SINGLE COLOR LEDS GREEN THIN PROFILE 570LM

Part	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Lens Color	Current - Test	Millicandela Rating	Color	Lens Style	Lens Transparency	Mounting Type	Viewing Angle	Wavelength - Dominant	Configuration	Lens Size [x]	Lens Size [y]	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Height (Max) [Max] [z]	Supplier Device Package	Supplier Device Package
Broadcom Limited HSME-C130	1.6 mm	0.8 mm	575 nm	White	20 mA	54 mcd	Green	Rectangle with Flat Top	Diffused	Surface Mount	110 °	573 nm	Standard	1.15 mm	0.8 mm	0.35 mm	1.94 V	1608 Metric	0603

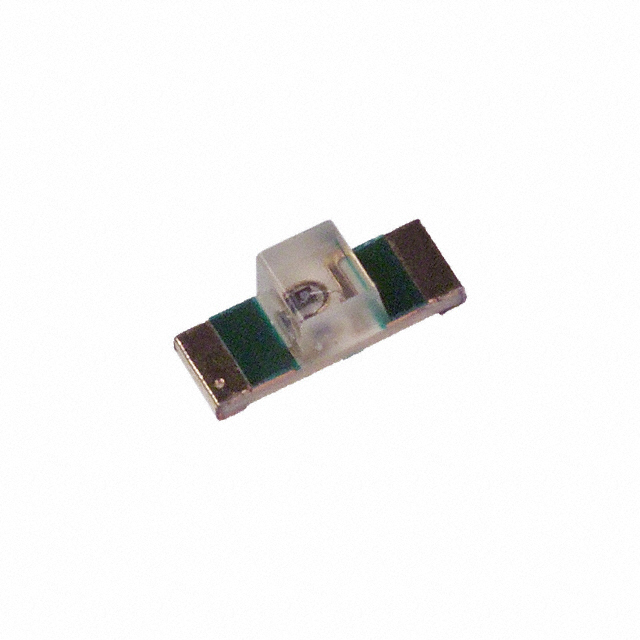

Broadcom Limited HSME-C265	3.4 mm	1.25 mm	570 nm	Colorless	20 mA	50 mcd	Green	Rectangle with Flat Top	Clear	Surface Mount Bottom Entry	150 °	572 nm	Standard	1.25 mm	1.2 mm		2.1 V		1305 (3412 Metric)	1.2 mm	3412	1305
Broadcom Limited HSME-C110	3.2 mm	1.5 mm	570 nm	Colorless	20 mA	52 mcd	Green	Rectangle with Domed Top	Clear	Surface Mount	130 °	572 nm	Standard	2 mm	1 mm	1 mm	2.1 V		2-SMD No Lead			Chip LED
