76HPSB Series

Catalog

SWITCH DIP ON OFF SPST 4 PIANO 0.15A 30VDC GULL WING 2000CYCLES 2.54MM SMD T/R

Part	Electrical Life	Mechanical Life	Body Material	Length	Length	Contact Material	Height Above Board [z]	Height Above Board [z]	Circuit	Number of Positions	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Voltage Rating	Washable	Pitch	Pitch	Mounting Type	Contact Finish

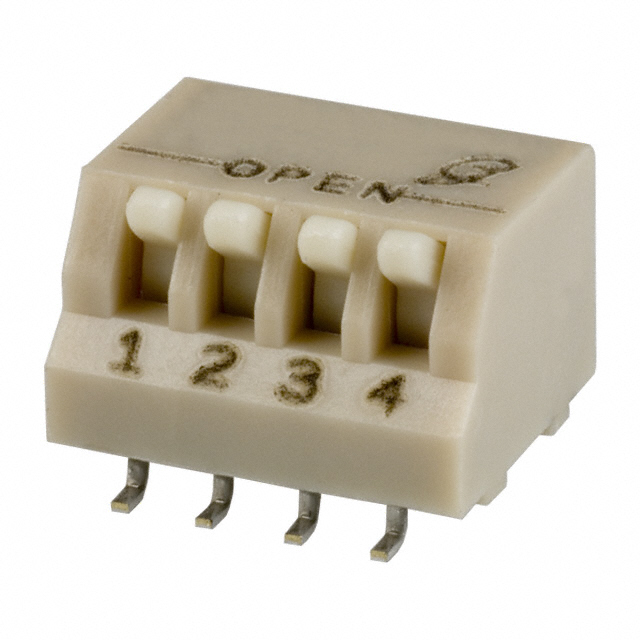

Grayhill Inc. 76HPSB04GWRT	2000 Steps	2000 Cycles	Thermoplastic	12.19 mm	0.48 in	Copper Alloy	0.337 in	8.56 mm	SPST	4	Raised	85 °C	-40 C	Piano	Gull Wing	30 VDC		2.54 mm	0.1 "	Right Angle Surface Mount	Gold
Grayhill Inc. 76HPSB02GWT	2000 Steps	2000 Cycles	Thermoplastic	7.11 mm	0.28 in	Copper Alloy	0.337 in	8.56 mm	SPST	2	Raised	85 °C	-40 C	Piano	Gull Wing	30 VDC		2.54 mm	0.1 "	Right Angle Surface Mount	Gold
