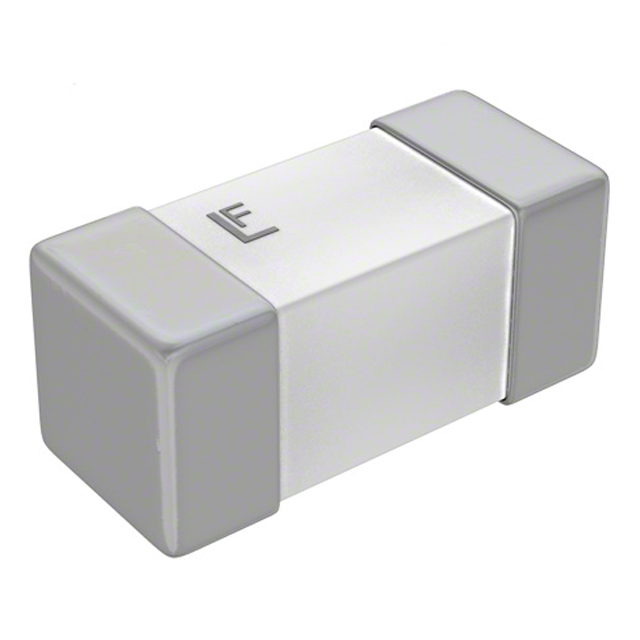

FUSE 125V V/FA NANO2 Lead-Free .750A
FUSE 125V V/FA NANO2 Lead-Free .750A
| Part | DC Cold Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage Rating - DC | Mounting Type | Breaking Capacity @ Rated Voltage | Approval Agency | Voltage Rating - AC | Melting I²t | Response Time | Fuse Type | Package / Case | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.2475 Ohms | -55 C | 125 °C | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | 125 VDC | Surface Mount | 50 A | CSA UL | 125 V | 0.206 | Fast Blow | Board Mount (Cartridge Style Excluded) | 2-SMD Square End Block | 750 mA |
