FOD617 Series

Catalog

OPTOISOLATOR 5KV TRANSISTOR 4DIP

Part	Current - DC Forward (If) (Max)	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Vce Saturation (Max) [Max]	Mounting Type	Number of Channels	Output Type	Current - Output / Channel	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Input Type	Operating Temperature [Min]	Operating Temperature [Max]
ON Semiconductor FOD617C300W	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	200 %	100 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617CW	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	200 %	100 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617DS	50 mA	4-SMD Gull Wing	3 µs	4 µs	4-SMD	400 mV	Surface Mount	1	1.81 mOhm	50 mA	320 %	160 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617D300W	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	320 %	160 %	70 V	1.35 V	DC	-55 °C	110 °C

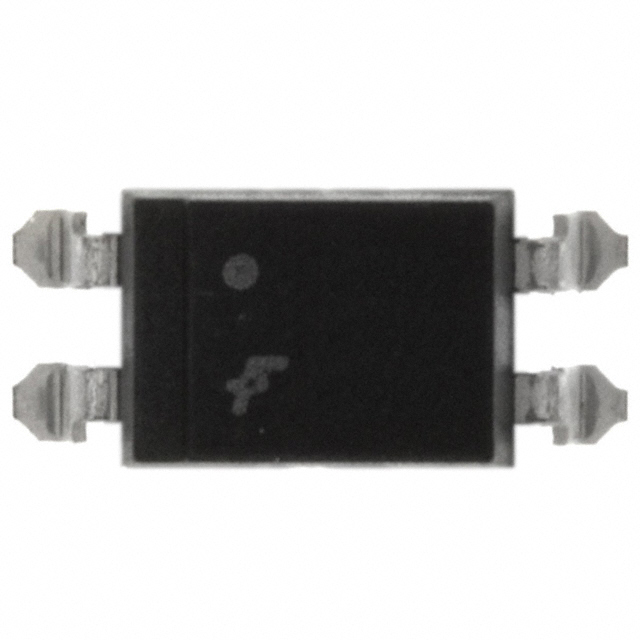

ON Semiconductor FOD617A3S	50 mA	4-SMD Gull Wing	3 µs	4 µs	4-SMD	400 mV	Surface Mount	1	1.81 mOhm	50 mA	80 %	40 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617DW	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	320 %	160 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617C300	50 mA	4-DIP (0.300" 7.62mm)	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	200 %	100 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617AW	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	80 %	40 %	70 V	1.35 V	DC	-55 °C	110 °C
ON Semiconductor FOD617A300W	50 mA	4-DIP	3 µs	4 µs	4-DIP	400 mV	Through Hole	1	1.81 mOhm	50 mA	80 %	40 %	70 V	1.35 V	DC	-55 °C	110 °C

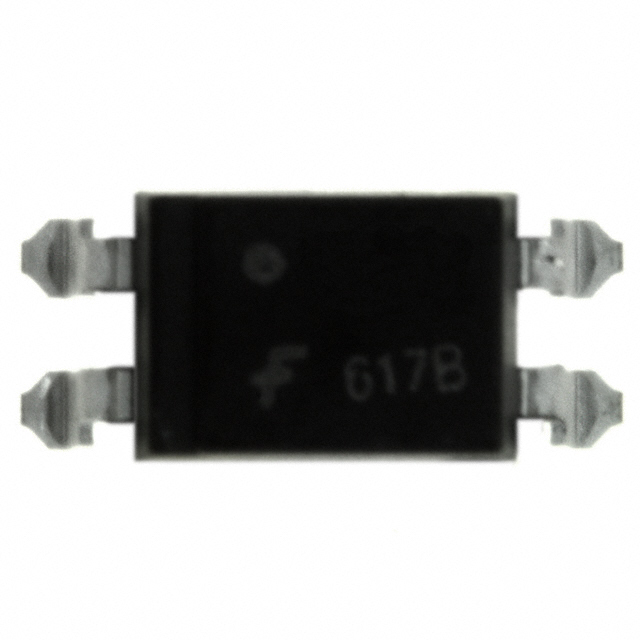

ON Semiconductor FOD617B3SD	50 mA	4-SMD Gull Wing	3 µs	4 µs	4-SMD	400 mV	Surface Mount	1	1.81 mOhm	50 mA	125 %	63 %	70 V		DC	-55 °C	110 °C
