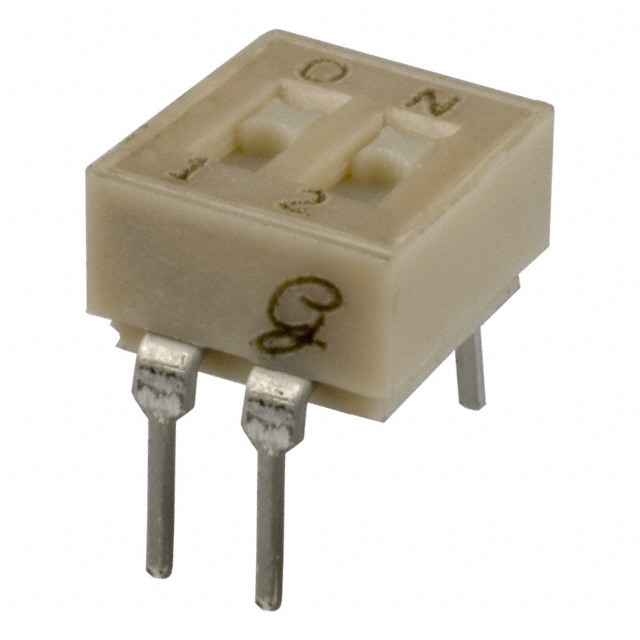

90B02 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length	Length	Electrical Life	Body Material	Washable	Termination Style	Actuator Level	Pitch	Pitch	Actuator Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Circuit	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Features	Contact Material
Grayhill Inc. 90B02ST	2000 Cycles	0.27 in	6.86 mm	2000 Steps	Thermoplastic		PC Pin	Flush Recessed	2.54 mm	0.1 "	Slide (Standard)	24 VDC	0.195 in	4.95 mm	25 mA	SPST	2	85 °C	-40 C	Through Hole	Gold	Tape Seal	Copper Alloy
Grayhill Inc. 90B02SLT	2000 Cycles	0.27 in	6.86 mm	2000 Steps	Thermoplastic		PC Pin	Flush Recessed	2.54 mm	0.1 "	Slide (Standard)	24 VDC	0.195 in	4.95 mm	25 mA	SPST	2	85 °C	-40 C	Through Hole	Gold	Position Identification Line Tape Seal	Copper Alloy
