316131 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

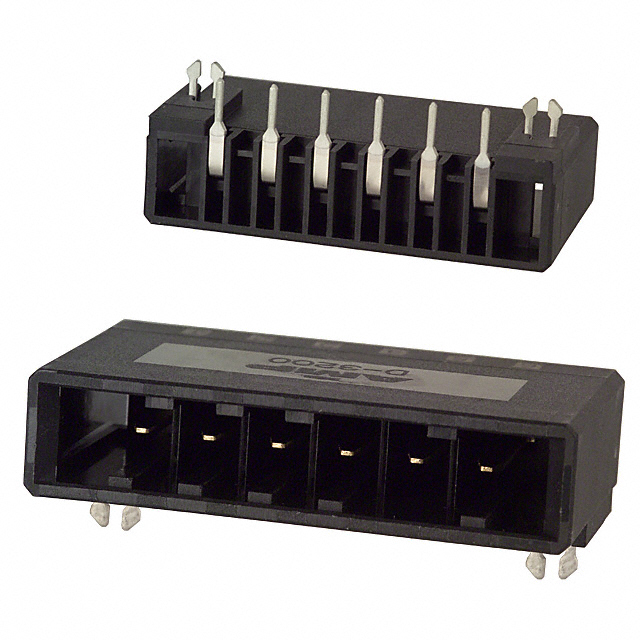

DYNAMIC D-3200 HDR ASSY 6P H
| Part | Applications | Style | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Insulation Color | Voltage Rating | Contact Material | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Rows | Material Flammability Rating | Contact Finish - Mating | Shrouding | Contact Type | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Number of Positions | Termination | Mounting Type | Connector Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose Industrial | Board to Board Cable | Detent Lock | 0.15 in | 3.81 mm | 105 ░C | -55 °C | All | Black | 600 V | Copper Alloy | 9.35 mm | 0.368 in | 5.08 mm | 0.2 in | 1 | UL94 V-0 | Gold | Shrouded - 4 Wall | Tab | Rectangular | 15 µin | 0.38 µm | Glass Filled Polyester Thermoplastic | 6 | Solder | Through Hole Right Angle | Header | Tin |
