MS12ASG Series

Catalog

SWITCH SLIDE SPDT 0.4VA 28V

Part	Electrical Life	Switch Travel	Actuator Material	Mechanical Life	Current Rating (Amps)	Features	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Contact Timing	Voltage Rating - DC	Mounting Type	Contact Finish	Contact Material	Actuator Length [x]	Termination Style	Circuit
NKK Switches MS12ASG30/U	50000 Cycles	2.2 mm	Polybutylene Terephthalate (PBT) Glass Filled	100000 Cycles	0.4 VA	Epoxy Sealed Terminals	28 V	On-On	85 °C	-30 ░C	Standard	Non-Shorting (BBM)	28 V	Right Angle Through Hole	Gold	Copper	5.1 mm	PC Pin	SPDT

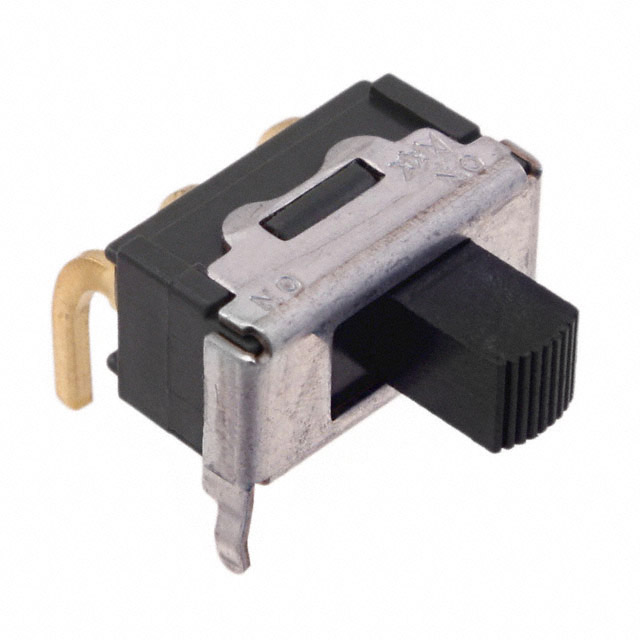

NKK Switches MS12ASG30	50000 Cycles	2.2 mm	Polybutylene Terephthalate (PBT) Glass Filled	100000 Cycles	0.4 VA	Epoxy Sealed Terminals	28 V	On-On	85 °C	-30 ░C	Standard	Non-Shorting (BBM)	28 V	Right Angle Through Hole	Gold	Copper	5.1 mm	PC Pin	SPDT
