ISL2101A Series

100V, 2A Peak, High Frequency Half-Bridge Drivers

Manufacturer: Renesas Electronics Corporation

Catalog

100V, 2A Peak, High Frequency Half-Bridge Drivers

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Logic Voltage - VIL, VIH	Mounting Type	Number of Drivers	Gate Type	Input Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]

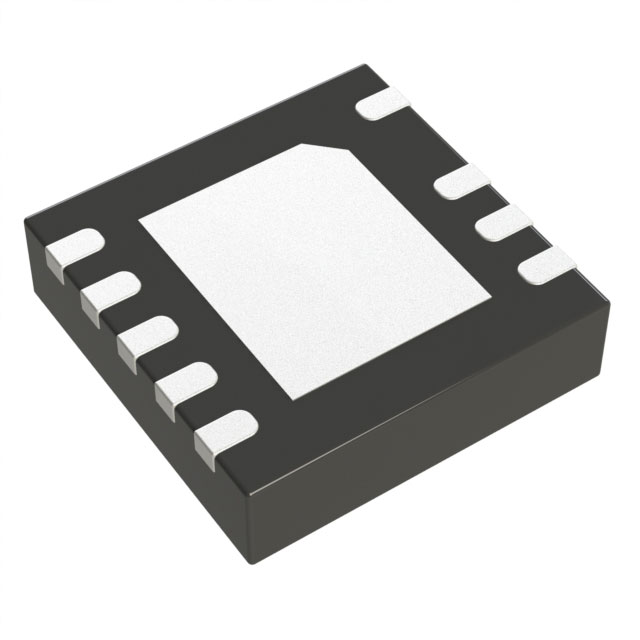

Renesas Electronics Corporation ISL2101AAR3Z	-40 °C	125 ¯C	9-VFDFN Exposed Pad	Independent	2 A	2 A	10 ns	10 ns	9-DFN (3x3)	1.4 V 2.2 V	Surface Mount	2	MOSFET (N-Channel) N-Channel MOSFET	Non-Inverting	9 V	14 V	Half-Bridge	114 V

Catalog

100V, 2A Peak, High Frequency Half-Bridge Drivers

Description

The ISL2100A, ISL2101A are 100V, high frequency, half-bridge N-channel power MOSFET driver ICs. They are based on the popular HIP2100, HIP2101 half-bridge drivers, but offer several performance improvements. The ISL2100A has additional input hysteresis for superior operation in noisy environments and the inputs of the ISL2101A, like those of the ISL2100A, can now safely swing to the VDDsupply rail. Finally, both parts are available in a very compact 9 Ld DFN package to minimize the required PCB footprint.
