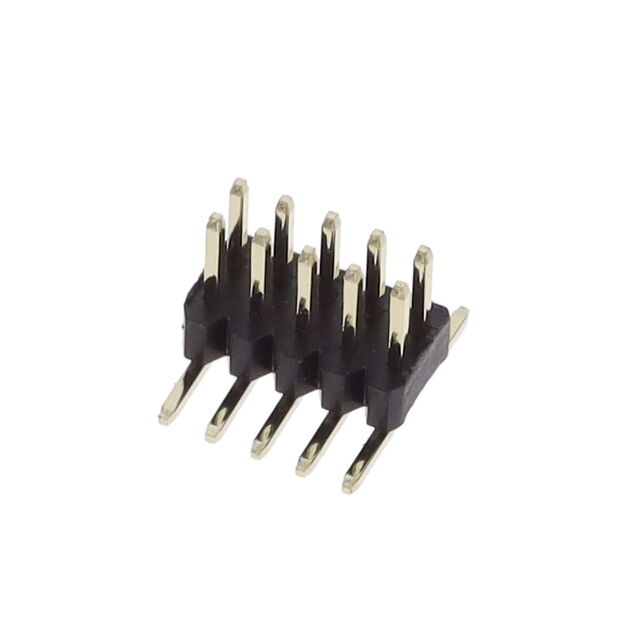

PM20B05VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, SMT, DUAL ROW, 1.27
| Part | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Insulation Height | Insulation Height | Contact Material | Termination | Number of Positions Loaded | Insulation Color | Mounting Type | Contact Shape | Contact Finish Thickness - Mating | Fastening Type | Contact Length - Mating | Contact Length - Mating | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Material | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 0.05 in | 1.27 mm | Header | 0.059 in | 1.5 mm | Copper Zinc | Solder | All | Black | Surface Mount | Square | Flash | Push-Pull | 2.79 mm | 0.11 in | Unshrouded | -40 C | 105 ░C | Male Pin | Gold | 10 | 1.27 mm | 0.05 in | Polyethylene | 2 |
