060-N780 Series

Catalog

IND PRESSURE TRANSMITTER 200 PSI

Part	Output Type	Port Style	Accuracy	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Port Size	Pressure Type	Output [Min]	Output [Max]	Package / Case	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [custom]	Maximum Pressure	Maximum Pressure

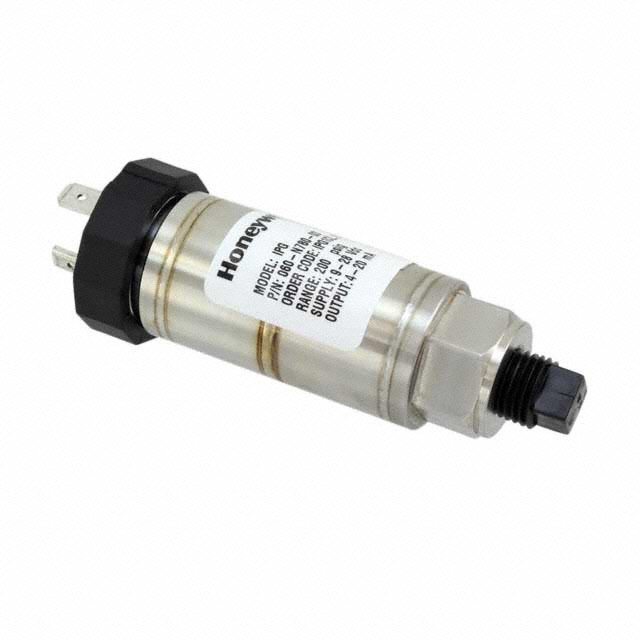

Honeywell Sensing and Productivity Solutions 060-N780-03	Analog Current	Threaded	0.15 %	Temperature Compensated	4136.85 kPa	600 PSI	Industrial Automation	125 °C	-40 C	B Male	0.25 in	0.25 "	Vented Gauge	4 mA	20 mA	Cylinder	1378.95 kPa	200 PSI

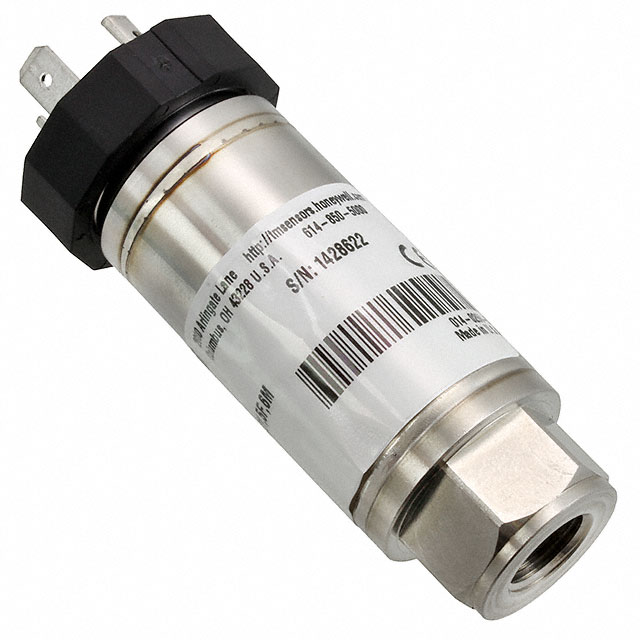

Honeywell Sensing and Productivity Solutions 060-N780-07	Analog Current	Threaded	0.15 %	Temperature Compensated		2000 PSI	Industrial Automation	125 °C	-40 C	B Female			Vented Gauge	4 mA	20 mA	Cylinder	6894.76 kPa	1000 PSI	0.25 "	6.35 mm	13789.51 kPa

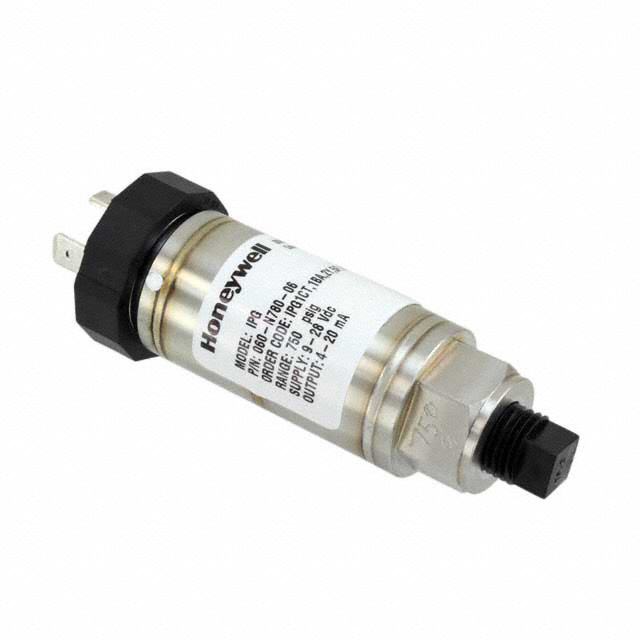

Honeywell Sensing and Productivity Solutions 060-N780-06	Analog Current	Threaded	0.15 %	Temperature Compensated	15513.2 kPa	2250 PSI	Industrial Automation	125 °C	-40 C	B Female			Vented Gauge	4 mA	20 mA	Cylinder	5171.07 kPa	750 PSI	0.25 "	6.35 mm

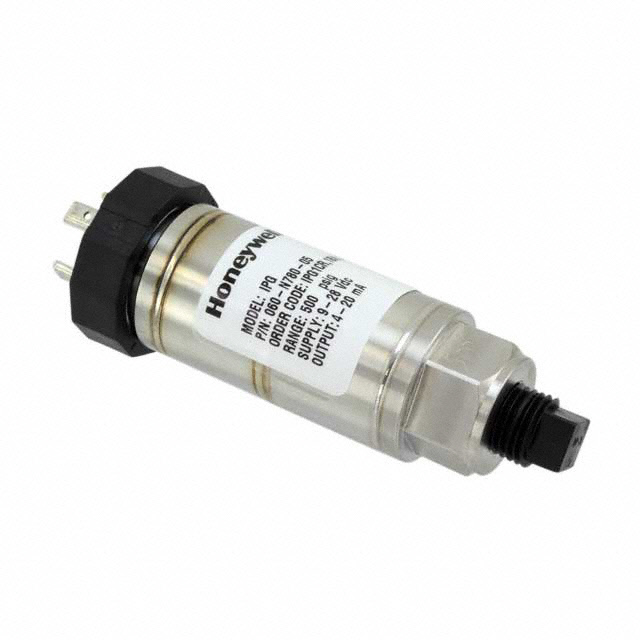

Honeywell Sensing and Productivity Solutions 060-N780-05	Analog Current	Threaded	0.15 %	Temperature Compensated		1500 PSI	Industrial Automation	125 °C	-40 C	B Female			Vented Gauge	4 mA	20 mA	Cylinder	3447.38 kPa	500 PSI	0.25 "	6.35 mm	10342.14 kPa
Honeywell Sensing and Productivity Solutions 060-N780-04	Analog Current	Threaded	0.15 %	Temperature Compensated			Industrial Automation	125 °C	-40 C	B Female			Vented Gauge	4 mA	20 mA	Cylinder	1723.69 kPa	250 PSI	0.25 "	6.35 mm	5171.07 kPa	750 PSI
