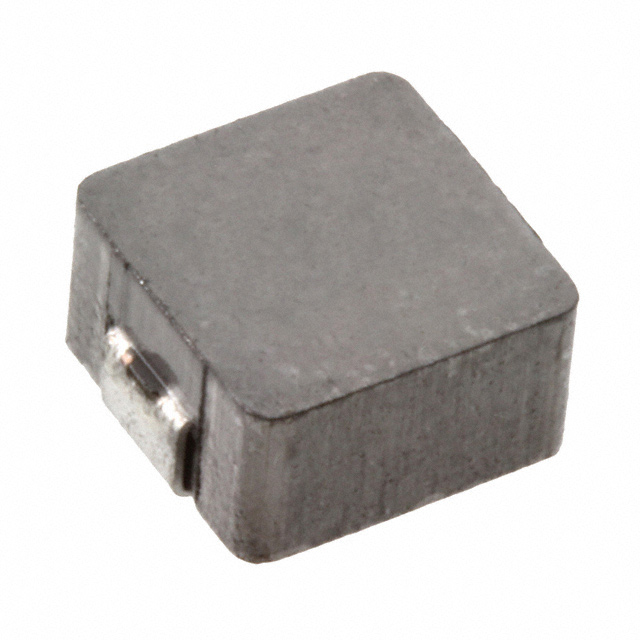

ASPI-HI Series

Catalog

FIXED IND 4.7UH 5.5A 40 MOHM SMD / TAPE & REEL (TR) ROHS COMPLIANT: YES

Part	Type	Current - Saturation (Isat)	Mounting Type	Material - Core	Inductance	DC Resistance (DCR)	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Abracon LLC ASPI-0630HI-4R7M-T15	Molded	10 A	Surface Mount	Carbonyl Powder	4.7 ÁH	40 mOhm	5.5 Amps	7.2 mm	6.65 mm	0.262 in	0.283 "	100 kHz	20 %	0.118 "	3 mm	Nonstandard	-55 C	125 °C	Shielded
Abracon LLC ASPI-0530HI-1R0M-T2	Molded	11 A	Surface Mount	Carbonyl Powder	1 µH	14 mOhm	7 A	5.6 mm		0.205 "	0.22 in	100 kHz	20 %	0.118 "	3 mm	Nonstandard	-55 C	125 °C	Shielded	5.2 mm
Abracon LLC ASPI-4020HI-4R7M-T	Molded	3 A	Surface Mount	Iron Alloy	4.7 ÁH	105 mOhm	2.8 A	4.4 mm	4.2 mm	0.165 in	0.173 in	100 kHz	20 %			Nonstandard	-55 C	125 °C	Shielded		0.079 in	2 mm
Abracon LLC ASPI-0630HI-2R2M-T15	Molded	14 A	Surface Mount	Carbonyl Powder	2.2 µH		8 A	7.2 mm	6.65 mm	0.262 in	0.283 "	100 kHz	20 %	0.118 "	3 mm	Nonstandard	-55 C	125 °C	Shielded				20 mOhm
Abracon LLC ASPI-0630HI-3R3M-T15	Molded	13.5 A	Surface Mount	Carbonyl Powder	3.3 µH		6.8 A	7.2 mm	6.65 mm	0.262 in	0.283 "	100 kHz	20 %	0.118 "	3 mm	Nonstandard	-55 C	125 °C	Shielded				30 mOhm
