QPS-20 Series

Manufacturer: Qualtek

Catalog

AC/DC CONVERTER 5V 20W

Part	Efficiency	Mounting Type	Approval Agency	Applications	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Features	Voltage - Output 1	Number of Outputs	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]
Qualtek QPS-20-5	76 %	Chassis Mount	CB CE cURus	ITE (Commercial)	3000 V	Open Frame	60 °C	-20 °C	4 A	2.01 "	3.5 "	51 mm	89 mm	20 mm	0.79 in	Adjustable Output DC Input Capable Universal Input	5 V	1	20 W
Qualtek QPS-20-3.3	69 %	Chassis Mount	CB CE cURus	ITE (Commercial)	3000 V	Open Frame	60 °C	-20 °C	4 A	2.01 "	3.5 "	51 mm	89 mm	20 mm	0.79 in	Adjustable Output DC Input Capable Universal Input	3.3 V	1	20 W	264 VAC	90 VAC
Qualtek QPS-20-24	80 %	Chassis Mount	CB CE cURus	ITE (Commercial)	3000 V	Open Frame	60 °C	-20 °C		2.01 "	3.5 "	51 mm	89 mm	20 mm	0.79 in	Adjustable Output DC Input Capable Universal Input	24 V	1	20 W

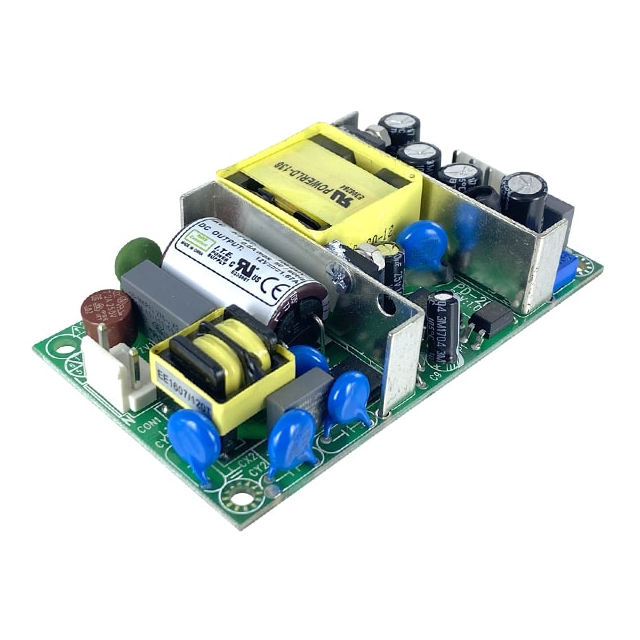

Qualtek QPS-20-12	79 %	Chassis Mount	CB CE cURus	ITE (Commercial)	3000 V	Open Frame	60 °C	-20 °C	1.67 A	2.01 "	3.5 "	51 mm	89 mm	20 mm	0.79 in	Adjustable Output DC Input Capable Universal Input	12 V	1	20 W
