V4D2AT0B Series
Manufacturer: Carling Technologies
Beta
⌘K

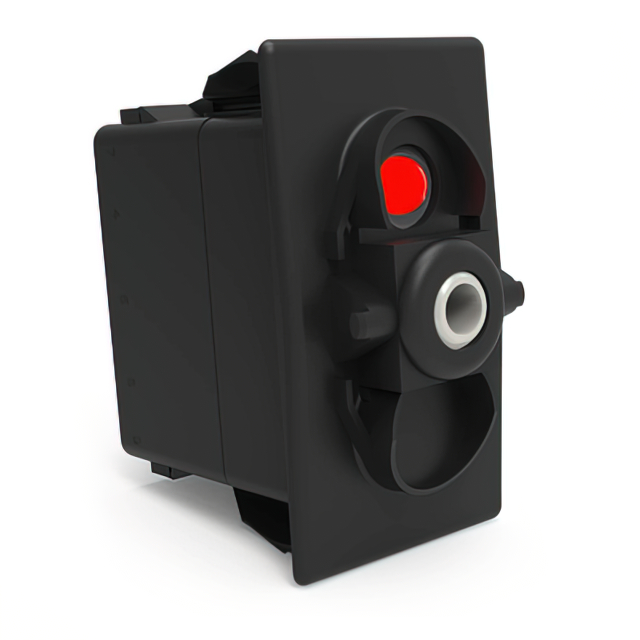

SWITCH ROCKER SPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Illumination Voltage (Nominal) | Actuator Marking | Mounting Type | Actuator Type | Current Rating (Amps) | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Switch Function | Circuit | Illumination Type, Color | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | 12 VDC | Varies by Cap | Panel Mount Snap-In | Actuator Arm Cap Required Illuminated | 20 A | 12 V | 36.83 mm | 21.08 mm | Quick Connect - 0.250" (6.3mm) | On-On | SPDT | LED Red | IP66 IP68 | 85 °C | -40 C | CSA UL VDE | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | 12 VDC | High Beam Horizontal | Panel Mount Snap-In | Convex (Reverse V) - Illuminated | 20 A | 12 V | 36.83 mm | 21.08 mm | Quick Connect - 0.250" (6.3mm) | On-On | SPDT | LED Red | IP66 IP68 | 85 °C | -40 C | CSA UL VDE | Black |
