CT5 Series
Manufacturer: PULS, LP
Beta
⌘K

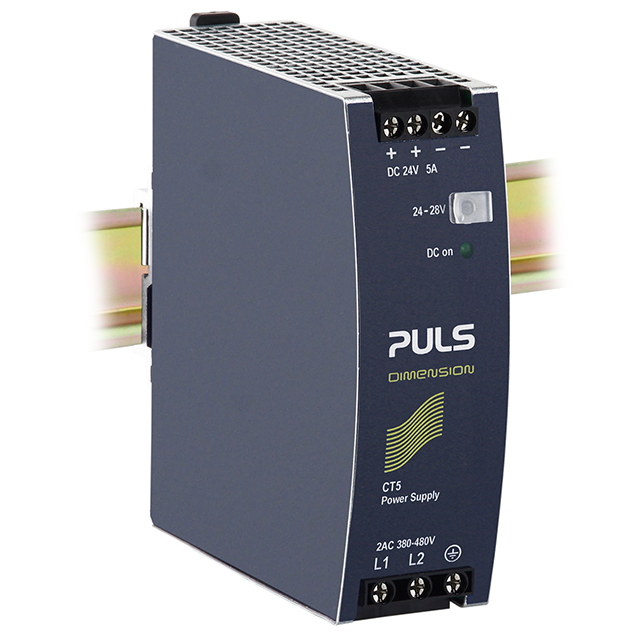

AC/DC DIN RAIL SUPPLY 24V 120W
| Part | Approval Agency | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Outputs | Efficiency | Current - Output (Max) | Standard Number | Input Type | Power (Watts) | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | ABS CSA DNV GL EAC IEC SEMI UL | Adjustable Output Load Sharing | 117 mm | 40 mm | 4.88 in | 4.61 " | 1.57 " | 124 mm | 70 °C | 0 °C | ITE (Commercial) | 1 | 90.4 % | 5 A | 508 60950-1 61010-2-201 Class I Div 2 F47 | AC | 120 W | 576 VAC | 323 VAC | 24 V | 500 V | |
 PULS, LP | ABS CSA DNV GL EAC IEC UL | Adjustable Output Load Sharing | 117 mm | 40 mm | 4.88 in | 4.61 " | 1.57 " | 124 mm | 70 °C | -25 °C | ITE (Commercial) | 1 | 85.8 % | 508 60950-1 61010-2-201 Class I Div 2 | AC | 96 W | 480 VAC | 380 VAC | 12 V | 500 V | 8 A |
