747948 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

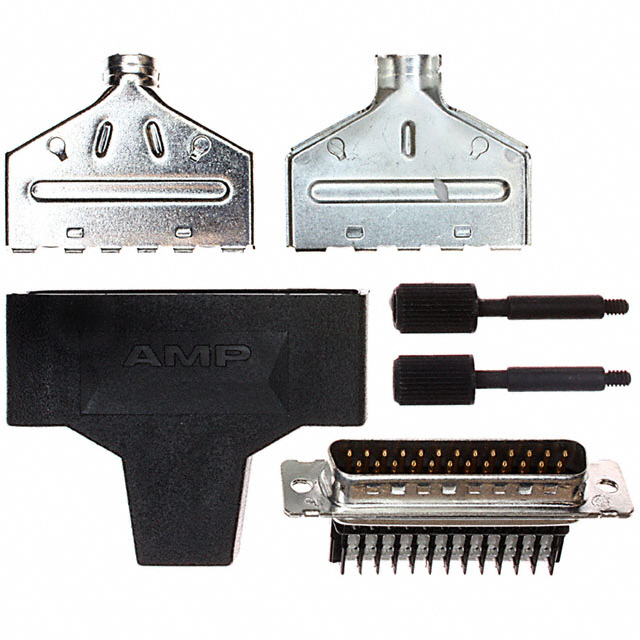

CONN D-SUB PLUG 25POS IDC
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Mounting Type | Number of Positions | Connector Style | Termination | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Material Flammability Rating | Contact Type | Features | Flange Feature | Number of Rows [custom] | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 26 AWG | 22 AWG | Phosphor Bronze | -55 C | 105 ░C | Black | 250 V | Free Hanging (In-Line) | 25 | D-Sub | Discrete Wire IDC | Varies by Wire Gauge | B DB | 3 | Plug Male Pins | UL94 V-0 | Signal | Backshell Cover Grounding Indents Mounting Screws Shielded | Cable Side Male Jackscrew (4-40) | 2 | Flash | Gold |
