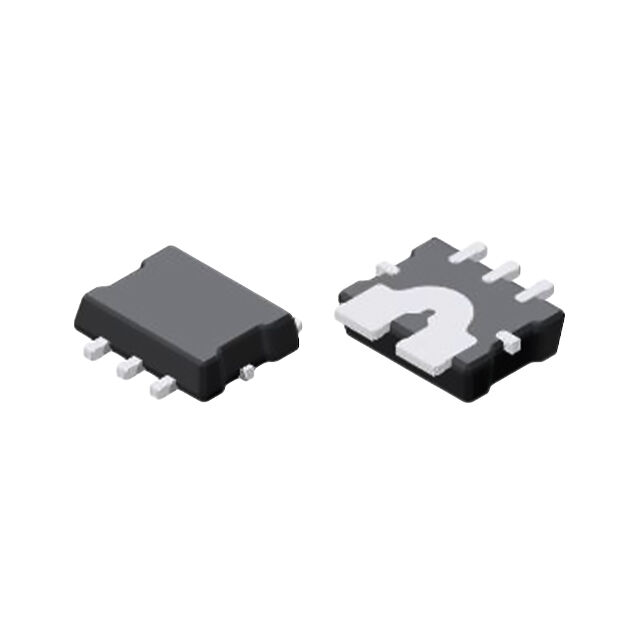

ACS72981 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 5V 7-PIN PSOF T/R AUTOMOTIVE AEC-Q100
| Part | Response Time | Supplier Device Package | Sensitivity | Polarization | Output | For Measuring | Frequency [Min] | Frequency [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Current - Sensing | Number of Channels [custom] | Current - Supply (Max) [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Sensor Type | Linearity | Qualification | Grade | Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | 1.8 µs | 7-PSOF | 40 mV/g | Bidirectional | Ratiometric Voltage | AC DC | DC | 250 kHz | -40 C | 150 °C | 7-PowerSMD Module | 50 A | 1 | 14 mA | 5.5 V | 4.5 V | Surface Mount | Hall Effect Differential | 0.8 % | |||
 Allegro MicroSystems | 1.8 µs | 7-PSOF | 52.8 mV/A | Unidirectional | Ratiometric Voltage | AC DC | DC | 250 kHz | -40 C | 150 °C | 7-PowerSMD Module | 50 A | 1 | 14 mA | 3.6 V | 3 V | Surface Mount | Hall Effect | 0.8 % | AEC-Q100 | Automotive | 3.5 % |
