SX1232 Series
Manufacturer: Semtech Corporation
Beta
⌘K
RF TRANSCEIVER HIGH LINK BUDGET TRA
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | GPIO | Power - Output | Modulation | Serial Interfaces | Current - Receiving | Supplier Device Package | Type | Data Rate (Max) | Package / Case | RF Family/Standard | Frequency [Max] | Frequency [Min] | Sensitivity | Current - Transmitting [Min] | Current - Transmitting [Max] | For Use With/Related Products | Supplied Contents | Contents | Utilized IC / Part | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 1.8 V | 3.7 V | Surface Mount | 85 °C | -40 C | 6 | 20 dBm | FSK GFSK GMSK MSK OOK | SPI | 9.3 mA | 28-QFN (6x6) | TxRx Only | 300 kbps | 28-VQFN Exposed Pad | General ISM < 1GHz | 1.02 GHz | 862 MHz | -123 dBm | 18 mA | 125 mA | |||||

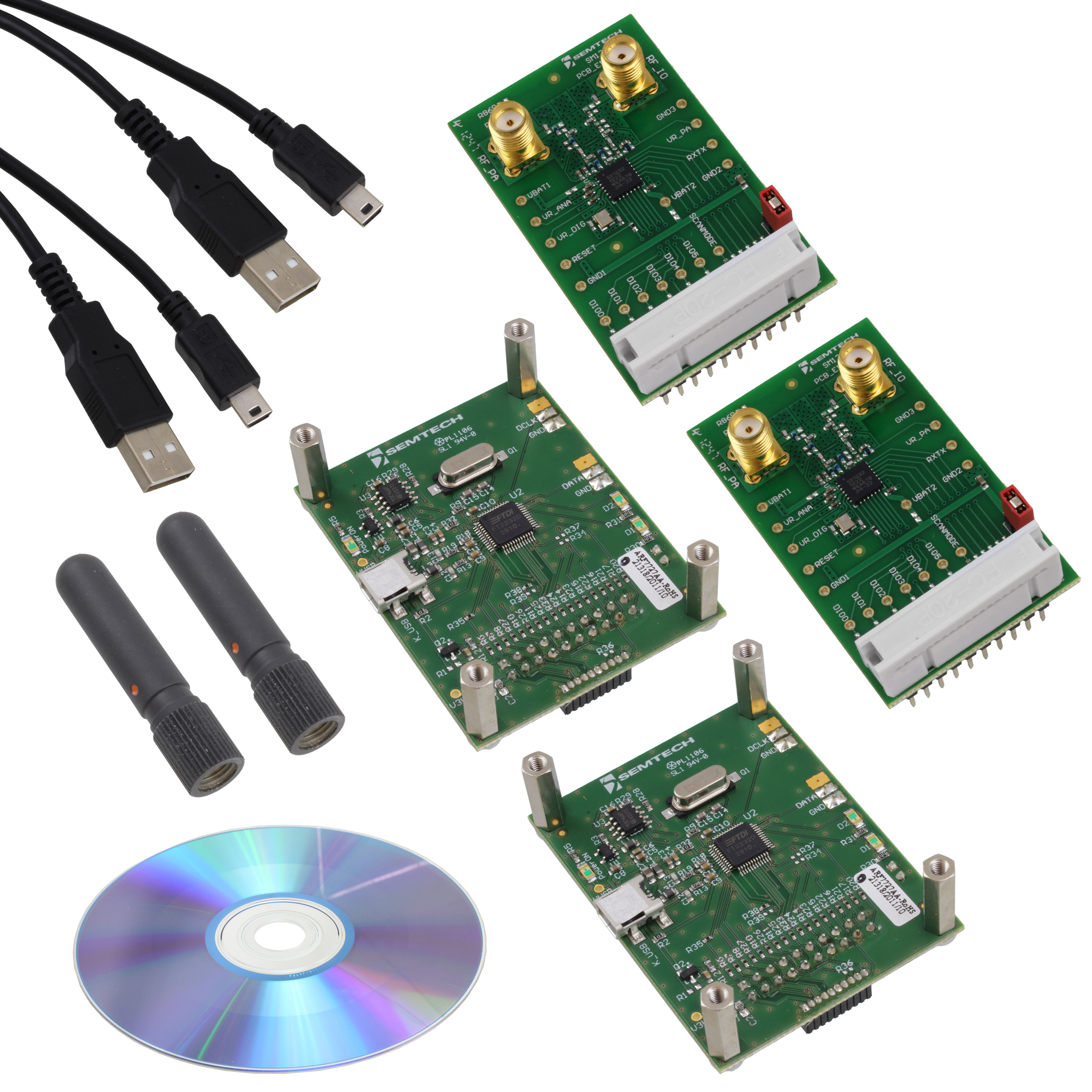

 Semtech Corporation | Transceiver | SX1232 | Board(s) | Board(s) | SX1232 | 915 MHz | |||||||||||||||||||

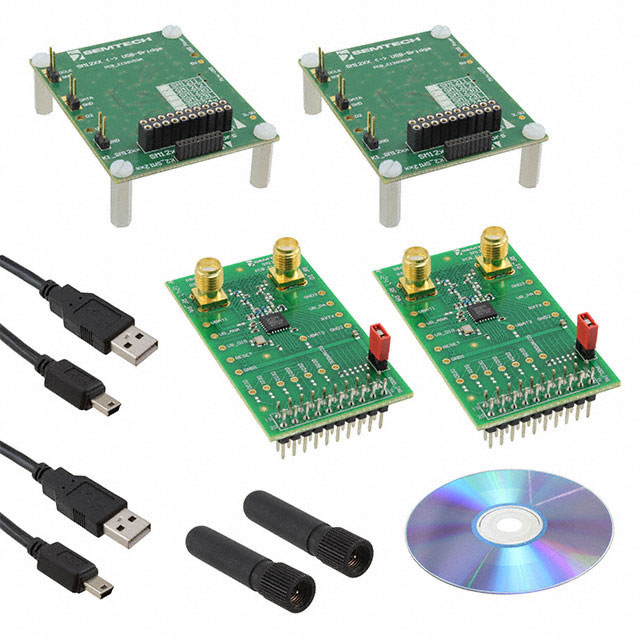

 Semtech Corporation | Transceiver | SX1232 | Board(s) | Board(s) | SX1232 | 868 MHz |
