CONN005 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

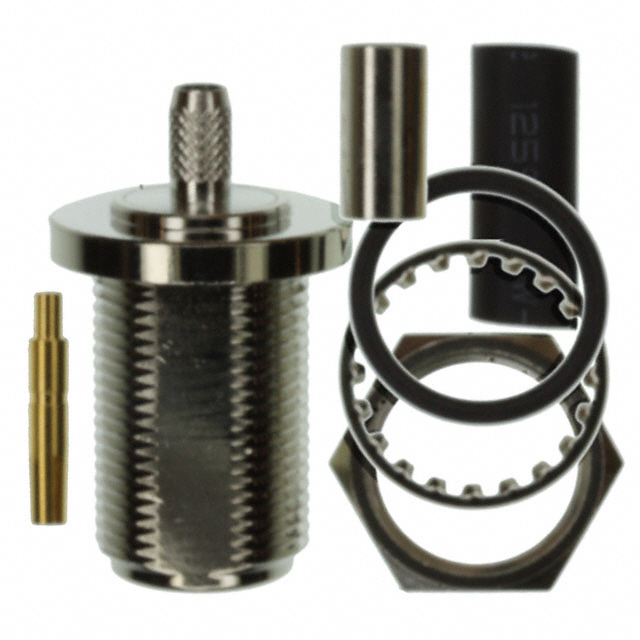

CONN N RCPT STR 50 OHM SOLDER
| Part | Voltage Rating | Includes | Body Finish | Center Contact Plating | Dielectric Material | Insertion Loss | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shield Termination | Number of Ports | Contact Termination | Housing Color | Impedance | Frequency - Max [Max] | Connector Style | Fastening Type | Mounting Type | Cable Group | Center Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 V | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Brass | -65 ░C | 165 °C | Receptacle Female Socket | Crimp | 1 | Solder | Silver | 50 Ohms | 11 GHz | N Type | Threaded | Panel Mount | RG-58 | Brass | Bulkhead - Front Side Nut |
