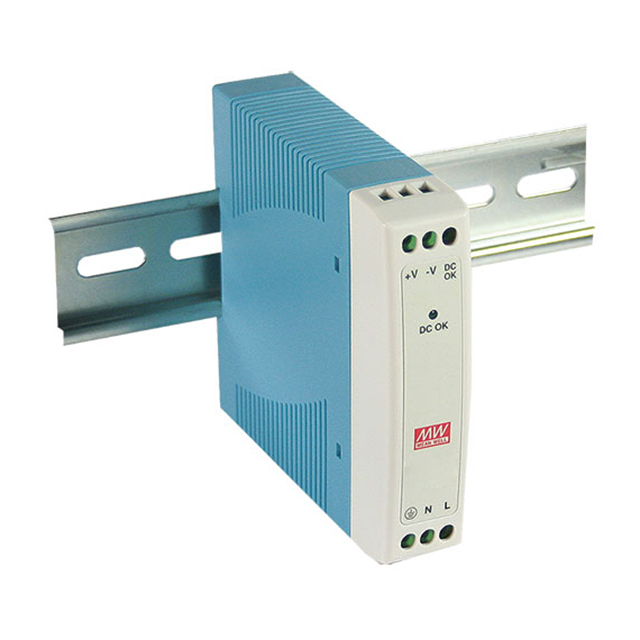

MDR-10 Series

Catalog

AC/DC DIN RAIL SUPPLY 12V 10W

Part	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Power (Watts)	DC Voltage - Input (Max) [Max]	Number of Outputs	Applications	Features	Current - Output (Max) [Max]	Voltage - Isolation	Input Type	Approval Agency
MEAN WELL USA Inc. MDR-10-12	120 V	264 VAC	85 VAC	70 °C	-20 °C	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	81 %	12 V	10 W	370 V	1	Industrial ITE (Commercial)	Universal Input	840 mA	3000 V	AC or DC	CB CE cURus TUV
MEAN WELL USA Inc. MDR-10-24	120 V	264 VAC	85 VAC	70 °C	-20 °C	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	84 %	24 V	10 W	370 V	1	Industrial ITE (Commercial)	Universal Input	420 mA	3000 V	AC or DC	CB CE cURus TUV
MEAN WELL USA Inc. MDR-10-5	120 V	264 VAC	85 VAC	70 °C	-20 °C	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	77 %	5 V	10 W	370 V	1	Industrial ITE (Commercial)	Universal Input	2 A	3000 V	AC or DC	CB CE cURus TUV
MEAN WELL USA Inc. MDR-10-15	120 V	264 VAC	85 VAC	70 °C	-20 °C	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	81 %	15 V	10 W	370 V	1	Industrial ITE (Commercial)	Universal Input	670 mA	3000 V	AC or DC	CB CE cURus TUV
