ETMA2001000 Series
Manufacturer: CUI Inc.
Beta
⌘K

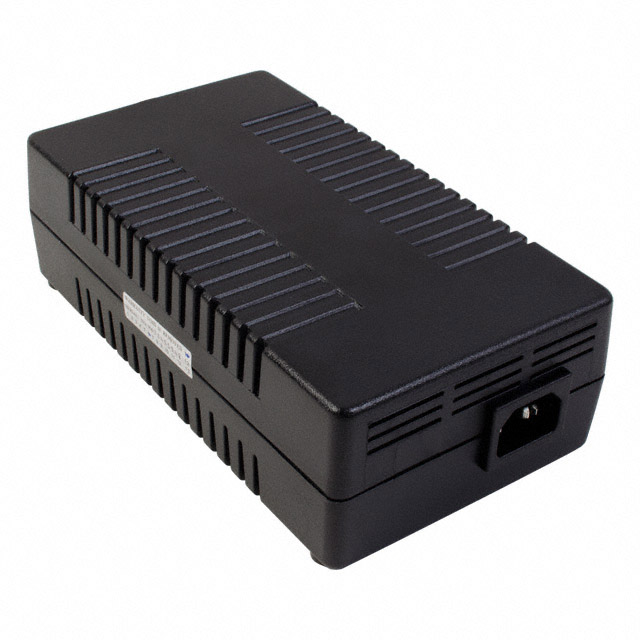

AC/DC DESKTOP ADAPTER 20V 200W
| Part | Input Connector | Region Utilized | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight | Current - Output (Max) [Max] | Standard Number | Output Connector | Cord Length | Cord Length | Power (Watts) | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Efficiency | Voltage - Output | Input Type | No Load Power Consumption | Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | IEC 320-C14 | North America | 50 °C | 0 °C | 60 mm | 7.42 in | 104.5 mm | 4.11 in | 188.5 mm | 2.36 in | 1.1 kg | 2.4 lbs | 10 A | 60601-1 | Power DIN 4 Pin | 1 m | 39.4 in | 200 Watts | Medical | 264 VAC | 90 VAC | TUV UL | Level V | 20 V | Cord | 500 mW | Desktop (Class I) |
