CIGT Series
Manufacturer: Samsung Electro-Mechanics
Beta
⌘K

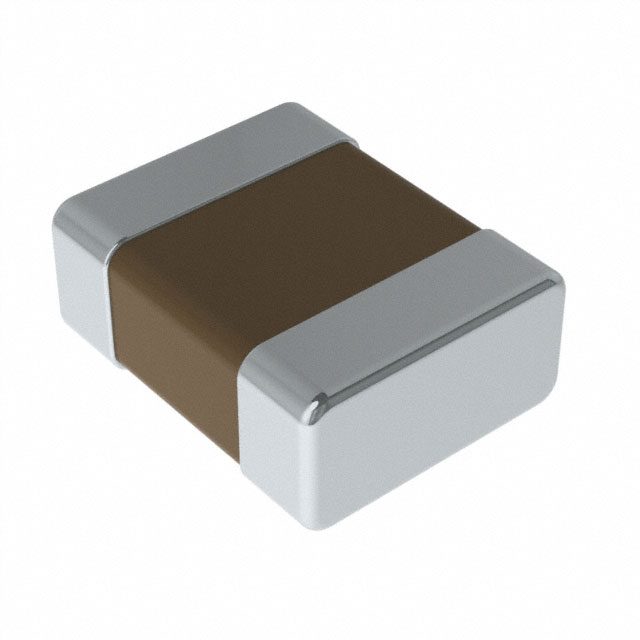

RF INDUCTORS - SMD CIGT,THIN FILM,0806,1.0UH,0.8?,7 EMBOSSED,-20 20%
| Part | Tolerance | DC Resistance (DCR) | Shielding | Current - Saturation (Isat) | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Supplier Device Package | Material - Core | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Inductance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samsung Electro-Mechanics | 20 % | 72 mOhm | Shielded | 2.8 A | Surface Mount | 0.031 in | 0.8 mm | 0806 (2016 Metric) | Metal Composite | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 1 MHz | 2.3 A | 125 °C | -40 C | Thin Film | 1 µH | 0806 (2016 Metric) |
Samsung Electro-Mechanics | 20 % | Shielded | Surface Mount | 0.031 in | 0.8 mm | 0806 (2016 Metric) | Metal Composite | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 1 MHz | 125 °C | -40 C | Thin Film | 1 µH | 0806 (2016 Metric) |
