999 Series

Catalog

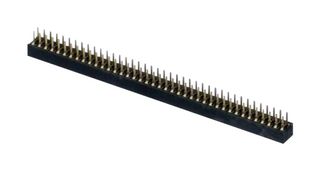

HEADERS & WIRE HOUSINGS 3M PIN STRIP HEADER .039" (1.0 MM) 999 SERIES, STRAIGHT, 2 ROWS, 30 CONTACTS

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Shape	Number of Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Number of Positions Loaded	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Post	Mounting Type	Insulation Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Length - Post	Insulation Height	Insulation Height
3M Electronic Specialty 95930-T000	5.69 mm	0.224 in	Gold	Square	2	30	-55 C	125 °C	Black	Flash	All	UL94 V-0	Solder	0.118 in	3 mm	1 mm	0.039 in	Header Cuttable	Gold	Through Hole	Nylon 9T Polyamide (PA9T)	Push-Pull	0.039 in	1 mm	Copper Alloy	Unshrouded	1 mm	0.039 in	1.7 mm	0.067 in	Male Pin
3M Electronic Specialty 99930-S000			Gold		2	30	-55 C	125 °C	Black	Flash	All	UL94 V-0	Solder		0.079 in	1 mm	0.039 in	Receptacle	Gold	Through Hole		Push-Pull	0.039 in	1 mm							Female Socket	2 mm	2.11 mm	0.083 in
