CSI-SGFB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

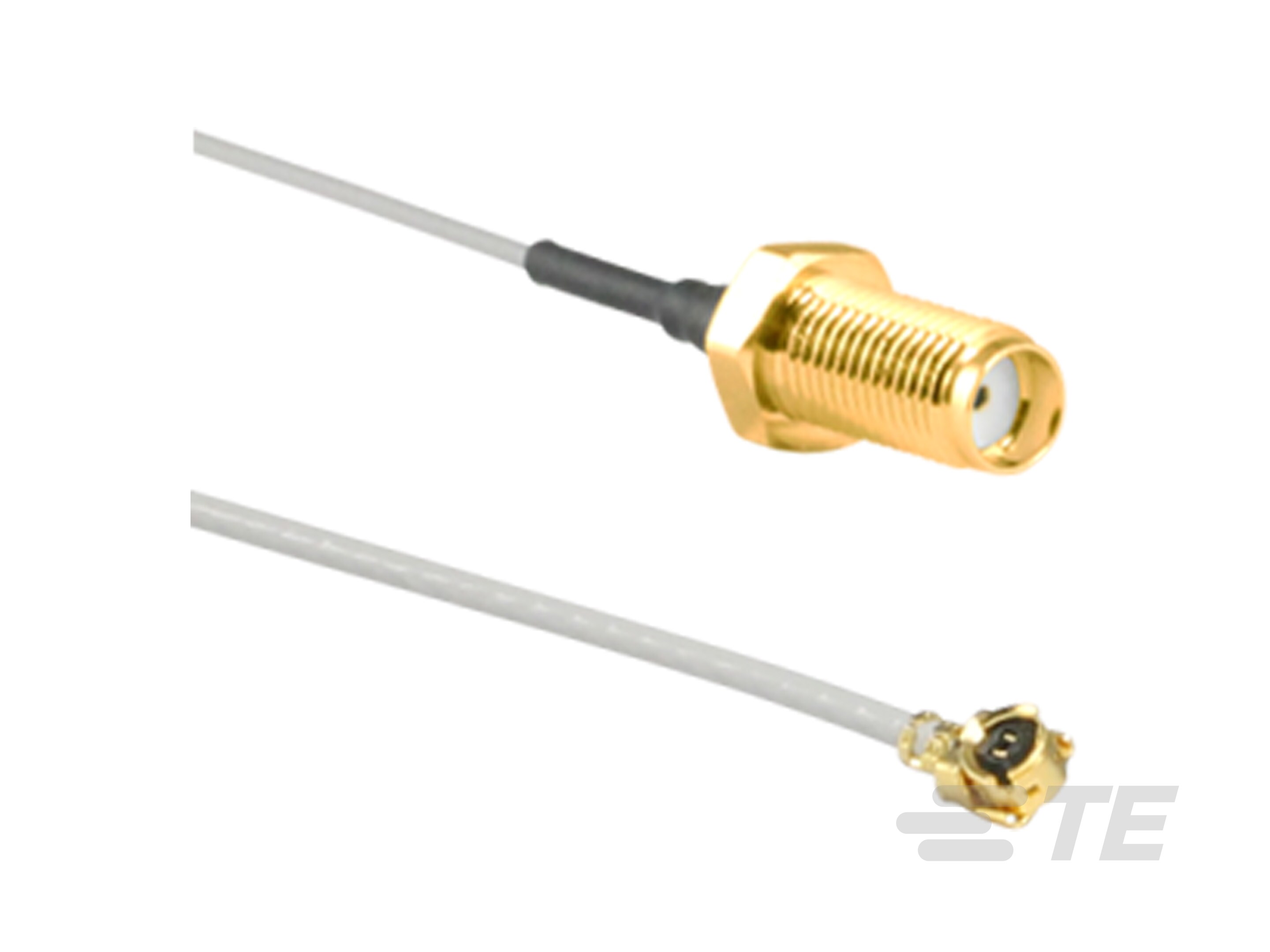

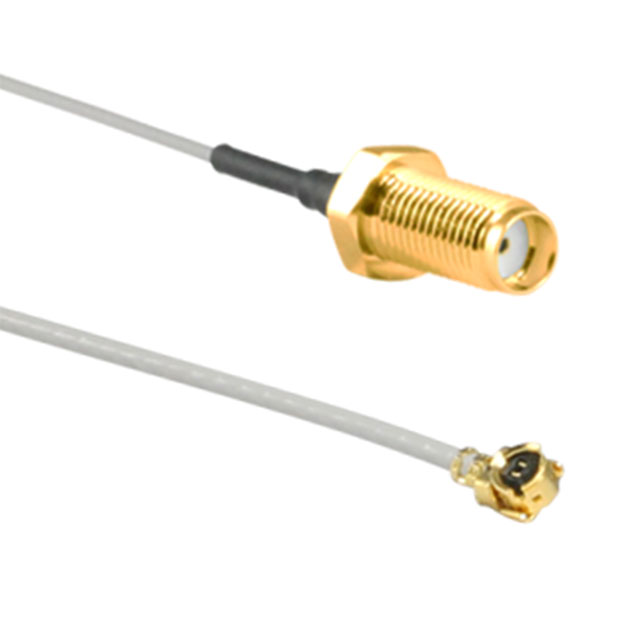

CBL ASSY U.FL-SMA JCK-PLG 7.874"

Part	Color	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	1st Connector	Style	Length	Length	1st Connector Mounting Feature	Cable Type	Cable Type [diameter]
TE Connectivity AMP Connectors CSI-SGFB-200-UFFR-B	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	200 mm	7.874 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
TE Connectivity AMP Connectors CSI-SGFB-300-UFFR	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	300 mm	11.811 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
TE Connectivity AMP Connectors CSI-SGFB-100-UFFR	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	100 mm	3.937 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
TE Connectivity AMP Connectors CSI-SGFB-100-UFFR-B	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	100 mm	3.937 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
TE Connectivity AMP Connectors CSI-SGFB-200-UFFR	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	200 mm	7.874 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
TE Connectivity AMP Connectors CSI-SGFB-300-UFFR-B	Gray	Panel Mount	U.FL (UMCC) Plug Right Angle	3 GHz	50 Ohms	Free Hanging (In-Line)	Female	Female	SMA Jack	U.FL (UMCC) to SMA	300 mm	11.811 in	Bulkhead - Front Side Nut	Coaxial Cable	1.13 mm
