| Part | Supplier Device Package | DC Resistance (DCR) | Inductance Frequency - Test | Current - Saturation (Isat) | Ratings | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Type | Package / Case | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current Rating (Amps) | Tolerance | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Radial | 0.88 mOhm | 100 kHz | 60 A | AEC-Q200 | Metal | -50 °C | 155 C | 1 µH | Drum Core Wirewound | Radial | Shielded | 0.787 in | 20.5 mm | 20 mm | 0.807 " | Through Hole | 62 A | 20 % | ||||||
 Pulse Electronics | Radial | 100 kHz | 35 A | AEC-Q200 | Metal | -50 °C | 155 C | 3.3 µH | Drum Core Wirewound | Radial | Shielded | 0.512 " | 15.5 mm | 13 mm | 0.61 in | Through Hole | 25 A | 20 % | 3.7 mOhm | 11 mm | 0.433 in | ||||
Pulse Electronics | Radial | 6.5 mOhm | 100 kHz | 20 A | AEC-Q200 | Metal | -50 °C | 155 C | 6.8 µH | Drum Core Wirewound | Radial | Shielded | 0.512 " | 15.5 mm | 13 mm | 0.61 in | Through Hole | 14 A | 20 % | 0.472 in | 12 mm | ||||
Pulse Electronics | Radial - 3 Leads | 100 kHz | 9 A | AEC-Q200 | Metal | -50 °C | 155 C | 82 µH | Drum Core Wirewound | Radial 3 Leads | Shielded | 0.787 in | 20.5 mm | 20 mm | 0.807 " | Through Hole | 6.4 A | 20 % | 55.8 mOhm | ||||||
 Pulse Electronics | Radial | 1.4 mOhm | 100 kHz | 53 A | AEC-Q200 | Metal | -50 °C | 155 C | 4.7 ÁH | Drum Core Wirewound | Radial | Shielded | 1.181 in | 30 mm | 30 mm | 1.181 in | Through Hole | 54 A | 20 % | 0.5 in | 12.7 mm | ||||
Pulse Electronics | Radial - 3 Leads | 100 kHz | 13 A | AEC-Q200 | Metal | -50 °C | 155 C | 22 µH | Drum Core Wirewound | Radial 3 Leads | Shielded | 0.748 in | 19.5 mm | 19 mm | 0.768 in | Through Hole | 15 A | 20 % | 13 mOhm | 8.9 mm | 0.35 " | ||||
Pulse Electronics | Radial | 100 kHz | 23 A | AEC-Q200 | Metal | -50 °C | 155 C | 3.3 µH | Drum Core Wirewound | Radial | Shielded | 0.472 " | 13 mm | 12 mm | 0.512 " | Through Hole | 19 A | 20 % | 4 mOhm | 0.472 in | 12 mm | ||||

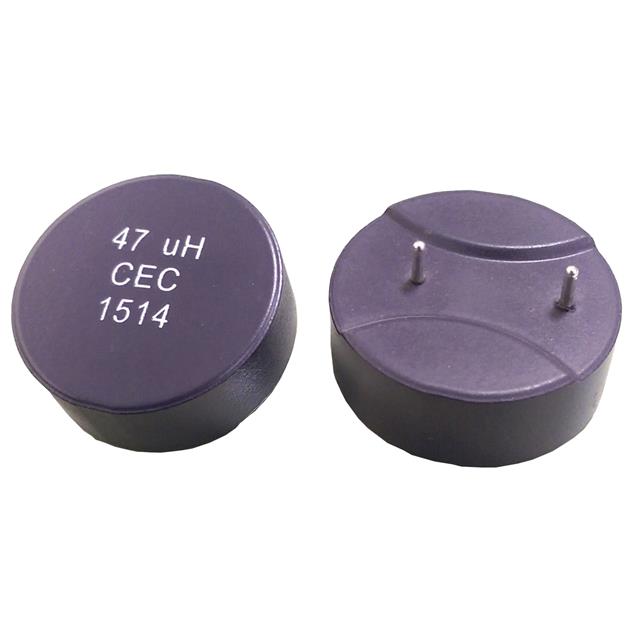

Pulse Electronics | Radial | 100 kHz | 16.2 A | AEC-Q200 | Metal | -50 °C | 155 C | 47 µH | Drum Core Wirewound | Radial | Shielded | 1.181 in | 30 mm | 30 mm | 1.181 in | Through Hole | 16 A | 20 % | 14.6 mOhm | 0.5 in | 12.7 mm |
