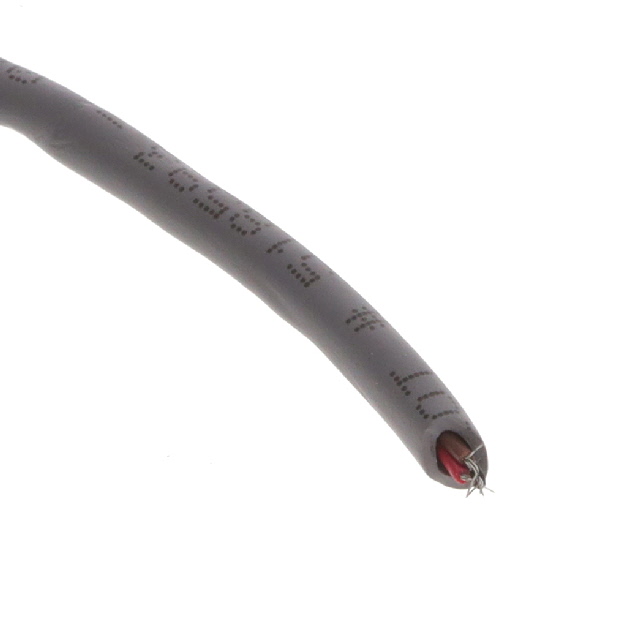

5921 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 1 /100 FT /EACH
| Part | Usage | Conductor Material | Length [x] | Length [x] | Ratings | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Features | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Communication Control | Copper Tinned | 100 ft | 30.5 m | ISO 10993 UL Style 2464 | Multi-Conductor | 300 VDC | 0.144 in | 3.66 mm | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Slate | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 3 | 0.813 mm | 0.032 in | 28 AWG |
