1747285 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

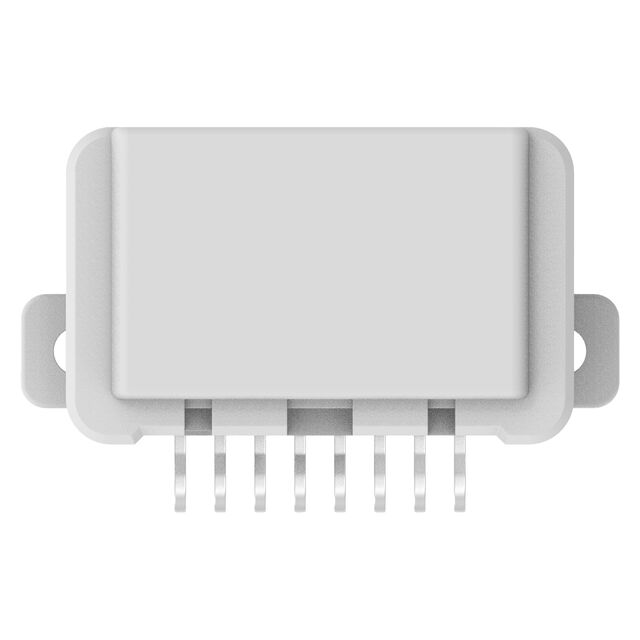

CONN HEADER R/A 8POS 2.2MM
| Part | Shrouding | Features | Voltage Rating | Style | Number of Rows | Fastening Type | Insulation Color | Mounting Type | Contact Length - Post | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Shape | Number of Positions Loaded | Insulation Height | Insulation Height | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Type | Applications | Contact Finish - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Mounting Flange | 12 V | Board to Cable/Wire | 1 | Latch Holder | Natural | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.087 in | 2.2 mm | 0.217 in | 5.5 mm | Square | All | 10 mm | 0.394 " | Header | 100 °C | -30 ░C | Solder | Male Pin | Automotive | Tin | 8 |
