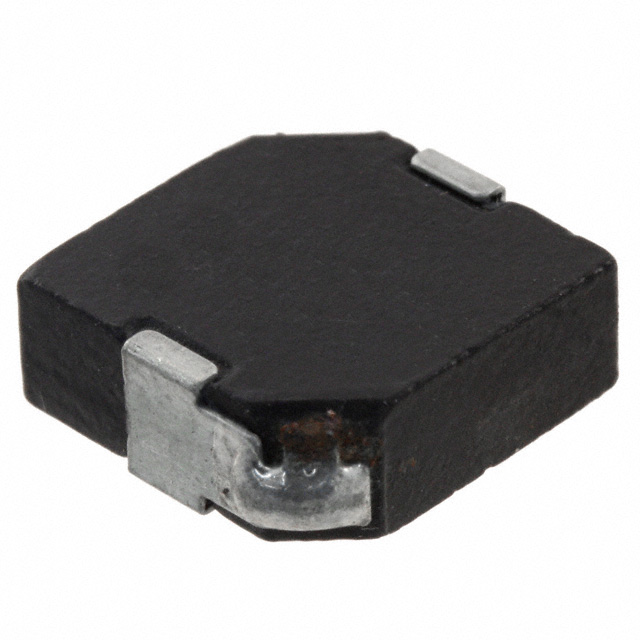

PM13666S Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1UH 29A 2.5 MOHM SMD
| Part | Mounting Type | Tolerance | Inductance | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Shielding | Current Rating (Amps) | Current - Saturation (Isat) | Type | DC Resistance (DCR) [Max] | Package / Case | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Surface Mount | 20 % | 1 µH | Iron | 0.232 " | 5.9 mm | -55 C | 150 °C | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | Shielded | 29 A | 50 A | Drum Core Wirewound | 2.5 mOhm | Nonstandard | 100 kHz |
 Bourns Inc. | Surface Mount | 20 % | 1 µH | 0.232 " | 5.9 mm | -40 C | 150 °C | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | Shielded | 25 A | Wirewound | Nonstandard | 100 kHz |
