STRIKE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HDR, 32P, BLK, ST, SN/NI/CU, A

Part	Insulation Height [z]	Insulation Height [z]	Insulation Color	Style	Mounting Type	Termination	Number of Positions Loaded	Contact Type	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Contact Finish - Post	Insulation Material	Shrouding	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Color	Number of Positions	Number of Rows	Contact Termination	Pitch	Pitch	Row Spacing [x]	Row Spacing [x]	Note
TE Connectivity AMP Connectors SRK15-MDA-32A-001	1.61 in	40.9 mm	Black	Board to Cable/Wire	Panel Mount Through Hole	Solder	All	Male Pin	Circular	0.16 in	4.06 mm	Mounting Flange	Tin	Plastic	Shrouded - 4 Wall	Header	Push-Pull	-55 C	125 °C	13 A	48 VDC
TE Connectivity AMP Connectors SRK15-MDF-32A-001	1.61 in	40.9 mm	Black	Board to Cable/Wire	Panel Mount Through Hole	Solder	All	Male Pin	Circular	0.16 in	4.06 mm	Mounting Flange	Tin	Plastic	Shrouded - 4 Wall	Header	Push-Pull	-55 C	125 °C	13 A	48 VDC
TE Connectivity AMP Connectors SRK02-FLA-64A-001					Free Hanging (In-Line)			Male Pin				Sealed		Polybutylene Terephthalate (PBT)		Receptacle	Push-Pull	-55 C	125 °C			Black	64	8	Crimp	0.134 in	3.4 mm
TE Connectivity AMP Connectors SRK15-MDC-32A-001	1.61 in	40.9 mm	Black	Board to Cable/Wire	Panel Mount Through Hole	Solder	All	Male Pin	Circular	0.16 in	4.06 mm	Mounting Flange	Tin	Plastic	Shrouded - 4 Wall	Header	Push-Pull	-55 C	125 °C	13 A	48 VDC
TE Connectivity AMP Connectors SRK06-MDF-32A-001					Free Hanging (In-Line)			Female Socket				Sealed		Polybutylene Terephthalate (PBT)		Receptacle	Lever Lock	-55 C	125 °C			Black			Crimp	0.134 in	3.4 mm	0.138 "	3.5 mm

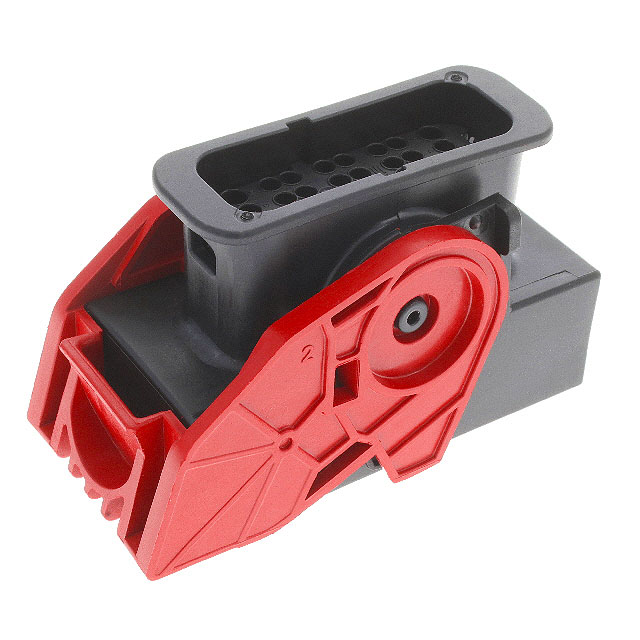

TE Connectivity AMP Connectors SRK06-MDA-32A-001					Free Hanging (In-Line)			Female Socket				Sealed Terminal Position Lock (TPA)		Polybutylene Terephthalate (PBT) Glass Filled		Plug	Latch Holder	-55 C	125 °C			Black			Crimp					Contacts Not Included
TE Connectivity AMP Connectors SRK02-MDB-32A-001					Free Hanging (In-Line)			Male Pin				Sealed Terminal Position Lock (TPA)		Polybutylene Terephthalate (PBT) Glass Filled		Receptacle	Lever Lock	-55 C	125 °C			Black			Crimp					Contacts Not Included
TE Connectivity AMP Connectors SRK15-MDB-32A-001	1.61 in	40.9 mm	Black	Board to Cable/Wire	Panel Mount Through Hole	Solder	All	Male Pin	Circular	0.16 in	4.06 mm	Mounting Flange	Tin	Plastic	Shrouded - 4 Wall	Header	Push-Pull	-55 C	125 °C	13 A	48 VDC
TE Connectivity AMP Connectors SRK02-MDI-32A-001					Free Hanging (In-Line) Panel Mount			Male Pin				Connector Position Assurance (CPA) Terminal Position Assurance (TPA)		Polybutylene Terephthalate (PBT)		Receptacle	Push-Pull	-55 C	125 °C			Black			Crimp	0.134 in	3.4 mm
TE Connectivity AMP Connectors SRK02-FLB-64A-001					Free Hanging (In-Line) Panel Mount			Male Pin				Sealed		Polybutylene Terephthalate (PBT)		Plug	Push-Pull	-55 C	125 °C			Black	64	8	Crimp	0.134 in	3.4 mm	0.138 "	3.5 mm
